What Is a Ground Loop? Understanding the Problem

An AC ground loop occurs when audio equipment connects to multiple ground paths in an electrical system, creating an audible 60 Hz hum in your signal chain. This AC ground loop hum is one of the most persistent challenges in professional recording, broadcast, and video production environments.

AC ground loops form when power arrives through asymmetrical distribution—a hot wire, neutral wire, and safety ground—and multiple devices reference ground at different points. The result: an AC ground loop hum that masks audio detail and degrades video clarity.

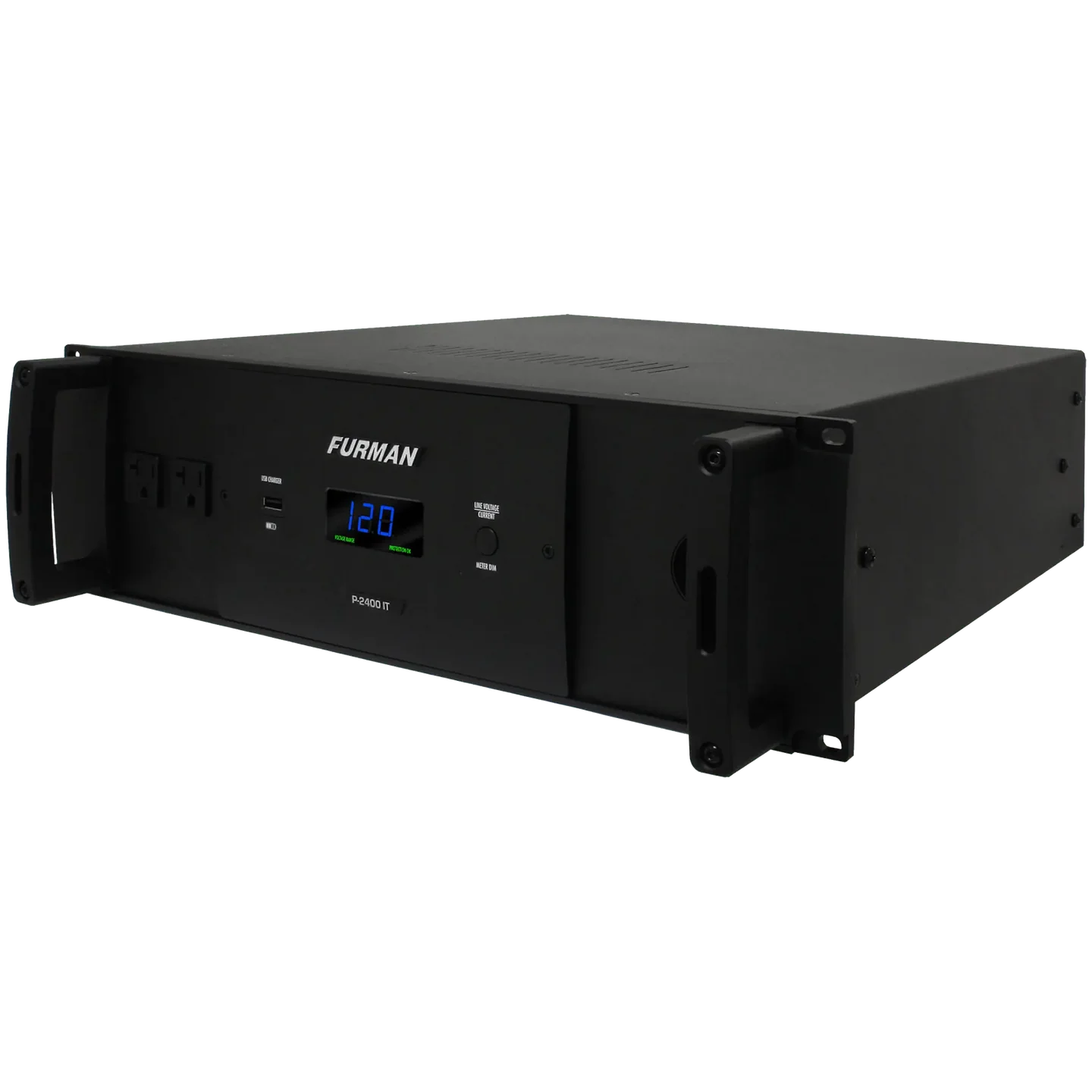

The P-2400 IT is a symmetrically balanced power conditioner designed specifically to break AC ground loops without rewiring or system modification. It provides 100% isolation from line, neutral, and ground, eliminating the electrical pathways that create AC ground loop hum.

Title

Why AC Ground Loop Hum Matters in Professional Settings

Professional recording, mastering, and broadcast environments cannot tolerate AC ground loop hum. Every decibel of noise masks low-level audio detail—microphone presence, spatial cues, instrument transients. In broadcast and video, AC ground loop hum manifests as visible shimmer or interference patterns.

The P-2400 IT is engineered for critical applications where noise-free performance is non-negotiable: recording studios, mastering facilities, broadcast stations, and video production. It delivers over 80 dB of common-mode noise reduction from 20 Hz to 20 kHz, designed to eliminate AC ground loop hum across the entire audio spectrum.

Title

Recognizing AC Ground Loop Hum Symptoms

Audible 60 Hz hum: A steady, low-frequency buzz at the AC line frequency. This is the most obvious sign of an AC ground loop.

AC ground loop hum that intensifies with time of day: Hum may be more pronounced during business hours or when building HVAC systems activate. This indicates AC contamination from shared electrical infrastructure.

Hum that changes with equipment adjustments: Moving cables, turning devices on/off, or repositioning equipment may increase or decrease the AC ground loop hum, suggesting ground potential differences.

Multi-room interference: The more equipment connected to the same ground system, the more likely AC ground loop hum becomes problematic.

The P-2400 IT's Ground Lift Switch is specifically designed to address these AC ground loop hum issues by floating the output ground, breaking the loop at its source.

Title

AC Ground Loop Solutions: What's Available

1. Passive AC Ground Loop Isolators

Small inline devices ($15–60) designed to reduce hum on individual cables by breaking ground connections on single audio pairs.

Limitations: These only address single-cable hum and don't eliminate the AC ground loop at the power source. They require installation on each affected cable pair and don't protect the rest of the system.

2. Star-Grounding Rewiring Projects

Custom electrical systems ($2,000+ labor) that attempt to consolidate ground connections. Requires professional electricians and significant system downtime.

Limitations: Extensive rewiring doesn't address AC power quality contamination and is costly and invasive. Ground loops often persist despite rewiring because they originate from AC power itself.

3. Balanced AC Power: The P-2400 IT Approach

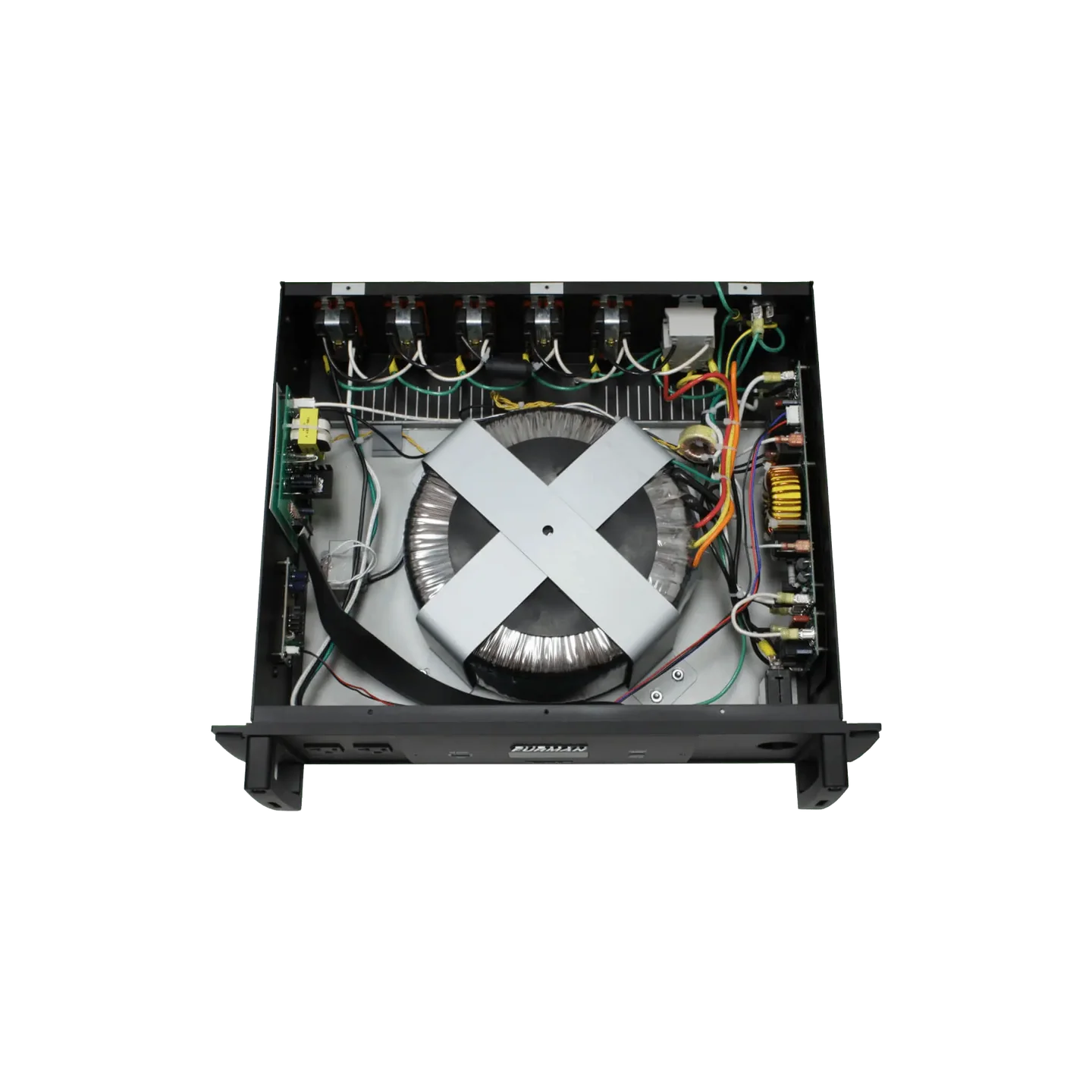

The P-2400 IT breaks AC ground loops by converting your building's asymmetrical AC power into symmetrically balanced power through a specially wound and shielded toroidal balanced isolation transformer. The result: 100% isolation from line, neutral, and ground—eliminating the electrical pathways that create AC ground loop hum.

No rewiring. No electrician. No external ground loop isolation devices. One installation permanently eliminates AC ground loop hum.

Title

How the P-2400 IT Solves AC Ground Loop Hum

1. Symmetrically Balanced Power Distribution

The P-2400 IT transforms standard 120V AC power into balanced power: two 60V lines of opposite polarity, both referenced to ground at the transformer's center tap. This balanced output is designed to prevent the asymmetrical voltage differences that create AC ground loop hum in your audio wiring.

The result: equipment receives clean power without the voltage potential differences that induce 60 Hz hum into audio and video signals.

2. Ground Lift Switch

The Ground Lift Switch floats the output ground, severing connection to the building's AC ground bus and eliminating residual AC ground loop hum that bypasses the balanced power stage.

Users should experiment with both switch positions and select whichever setting produces the cleanest audio or video output. Most installations find the Ground Lift Switch engaged eliminates the last traces of AC ground loop hum.

3. SMP Series Multi-Stage Protection with EVS (Extreme Voltage Shutdown)

While eliminating AC ground loop hum, the P-2400 IT also protects your entire rack from electrical faults:

Non-sacrificial surge clamping: The unit clamps voltage spikes at 188V peak (vs. 300V+ for standard surge protectors) and can handle multiple surges up to 6,000 volts, 3,000 amps without degradation.
EVS overvoltage protection: Continuously monitors incoming voltage. If it exceeds 140V (indicating wiring problems like accidental 208V connection), the unit instantly disconnects power to all outlets, protecting connected equipment.
GFCI protection on all outlets: Ground Fault Circuit Interrupter detection operates in under 5 milliseconds, protecting against ground faults and electrical hazards.

Title

P-2400 IT Specifications & Why They Matter

Specification

Benefit

20 amp / 2,400 watt capacity

Handles complete studio, broadcast, or video production rack power demands

10 rear-panel + 2 front-panel outlets

Sufficient distribution for mixing consoles, outboard gear, monitoring systems, video equipment

Two isolated outlet banks

Optional separation of digital and analog equipment to prevent cross-contamination

80 dB common-mode noise reduction (20 Hz–20 kHz)

Eliminates the AC ground loop hum that masks audio detail and degrades video clarity

40 dB noise reduction (20 kHz–1 MHz)

Protects against RF interference and video frequency contamination

188V surge clamping, 6,500 amp capacity

Professional-grade surge protection that doesn't degrade with use

Title

Installation & Optimization for AC Ground Loop Elimination

Electrical Requirements

Connect the P-2400 IT to a dedicated 120 VAC, 60 Hz, 20-amp grounded outlet. For continuous operation near 20 amps, a 30-amp circuit with 10-gauge wiring is recommended.

Placement in the Rack

Mount the P-2400 IT in the lowest available 19-inch rack position (unit weighs 90 lbs). The toroidal transformer minimizes magnetic leakage, but avoid placing directly adjacent to sensitive low-level signal processors like microphone preamps or mixing consoles when possible.

Powering All Equipment

For maximum AC ground loop elimination, power all equipment through the P-2400 IT. The balanced power effect is strongest when all devices operate from the same balanced power source. If total equipment draw exceeds 20 amps, prioritize powering analog and signal processing gear through the P-2400 IT and run high-current devices (power amplifiers) on standard AC power.

Optimizing the Ground Lift Switch

Test both Ground Lift Switch positions. Whichever setting produces the cleanest audio or video is the correct position for your installation. Most users find that engaging the Ground Lift Switch provides the final stage of AC ground loop hum elimination.

Title

Where AC Ground Loop Problems Are Most Severe—And How the P-2400 IT Helps

Recording Studios & Mastering Facilities

AC ground loop hum is most noticeable in mastering environments where 24-bit recordings capture low-level signals. The P-2400 IT is the standard tool for facilities that require noise-free performance.

Broadcast & Video Production

In broadcast and video settings, AC ground loop hum manifests as visible shimmer or interference on camera feeds and data corruption in networked systems. The P-2400 IT eliminates AC ground loop hum while protecting critical equipment from surge damage.

Live Sound & Touring

Touring operations encounter multiple electrical systems, each creating different AC ground loop hum patterns. The P-2400 IT provides immediate AC ground loop elimination regardless of venue electrical conditions. The EVS protection is critical when plugging into unfamiliar circuits.

Post-Production & Color Grading Suites

Video editing and color grading systems are sensitive to AC ground loop hum, which can cause monitor shimmer and visible artifacts. The P-2400 IT eliminates AC ground loop hum while improving overall monitor clarity.

Title

Safety & Protection Features Built In

GFCI Protection: All outlets are GFCI-protected, detecting ground faults in under 5 milliseconds.

EVS Overvoltage Shutdown: If voltage exceeds 140V, the unit instantly disconnects to prevent equipment damage.

Protection Status Indicator: A green LED on the display confirms surge protection is active. In the rare event of extreme surge damage (direct lightning), the LED goes dark, signaling service is needed.

Title

When AC Ground Loop Hum Persists: Troubleshooting & Advanced Setups

If AC ground loop hum remains after Ground Lift Switch optimization, multiple P-2400 IT units can be deployed. This approach is particularly effective for large facilities separating digital processing equipment from analog signal chains, each powered by its own balanced power source.

Title
