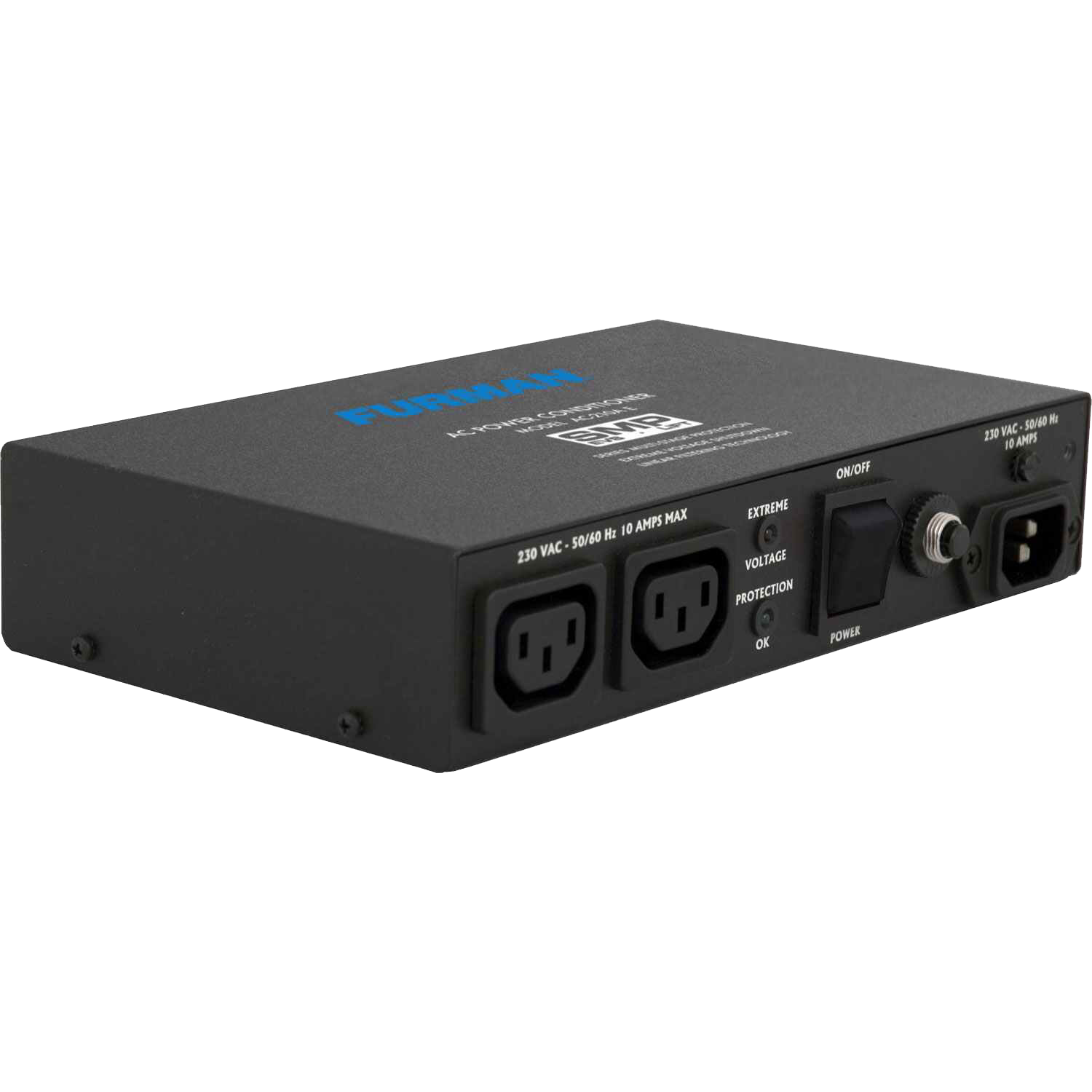

10A Two Outlet Power Conditioner (AC-210A E)

10A Two Outlet Power Conditioner (AC-210A E)

220-240 Volts

The AC-210AE compact power conditioner features Furman’s revolutionary SMP technology. Furman’s Series Multi-Stage Protection (SMP) circuit features our exclusive Linear Filter Technology (LiFT) and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, the world’s most advanced and comprehensive transient voltage surge suppressor.

Where to Purchase
Find a Retailer Near You

Become an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Product Description

SMP (Series Multi-Stage Protection Plus)

Furman SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system and repair of your surge suppressor. Not so with SMP. With Furman SMP, damaging transient voltages are safely absorbed, clamped, and dissipated – no sacrificed parts, no service calls, no downtime.



Unique to Furman SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of the USA/CIDA A-1-1 test. While other designs offer clamping voltages well above 300VAC peak (far beyond long-accepted professional standards), SMP clamps at 376VAC peak, 275 VAC RMS even when tested with multiple 6000VAC – 3000 Amp surges! This unprecedented level of protection is only available with Furman SMP technology.

LiFT (Linear Filtering Technology)

Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.

E.V.S. (Extreme Voltage Shutdown)

Furman trusted overvoltage circuitry protects against all-too-frequent accidental connections to extreme voltage by shutting off the incoming power until the overvoltage condition is corrected.

Compact Chassis Design

At only 1.75”H x 5”W x 8.5”D, and weighing in at only 3 lbs., the compact, low-profile design of the AC-210A E makes it ideal for mounting to the back of a flat-screen television, or anywhere that discretely located, remote power protection and purification are needed.

Technical Specifications

Family

AC Series

Line Voltage

240 Volts

AC Current Capacity

  • Input: 10 Amp capacity required
  • Output: 10 Amp RMS (both outlets combined)

AC Noise Attenuation (Transverse/Differential Mode)

  • >40dB @ 100kHz
  • >50dB @ 500kHz
  • (Linear attenuation curve from 0.05 to 100 ohms line impedance)

Transient Voltage Surge Suppression

  • 230VAC – Series Multi-Stage Protection
  • Non-Sacrificial with Zero Ground Contamination
  • 376V peak clamping @ 6000V/3000A Input

Extreme Voltage Shutdown

275 VAC (Auto-Reset)

Dimensions

1.75" (H) x 5" (W) x 8.5" (D)

Weight

3 lbs.

Safety Agency Listing

CE

UPC

654061028253

3 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Datasheet

Declaration of Conformity

Special Features

EXPLORE THE AC-210A E POWER CONDITIONER

SMP TECHNOLOGY

Provides the highest level of surge & spike protection available

LiFT

Linear AC power filtering to ensure clean power for unequaled audio & video clarity

Auto-Reset EVS Circuitry

Linear AC power filtering to ensure clean power for unequaled audio & video clarity

Zero Ground Contamination

Protects critical video circuits

10 Amp Rating

10 amp rating featuring circuit breaker for added protection

LED Indicators

Provides information on power quality and operational status of unit

Sleek Design

Compact chassis design easily attaches to any flat screen television mount or any other remote location

WHY CHOOSE Furman AC-210a E

Ultimate Protection For Digital Signage Applications

AC-210A E is the 220-240 Voltage Version of AC-215A.
If you are looking for AC-215A (120 Voltage Version), please click here.

Poster

What Our Customers Are Saying

Reviews of Furman AC-215A

AC-210A E is the 220-240 Voltage Version of AC-215A.
If you are looking for AC-215A (120 Voltage Version), please click here.

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

Can AC-210A E be mounted on a wall or rack?

Furman AC-210A E comes in a compact design that can easily attach to any flat screen television mount or remote location.

Is it compatible with all types of outlets?

The AC-210A E is designed for 220-240V AC outlets (not commonly found in North America). If you require the standard 120V AC outlets found in North America, please click here AC-215A (120 Voltage Version).

Is it safe for continuous use?

Yes, the AC-210A E is designed for continuous operation, providing safe power delivery to connected equipment. It features auto-resetting voltage protection and extreme voltage shutdown to ensure safe operation under irregular power conditions.

Does AC-210A E have any cooling system?

The AC-210A E is a compact power conditioner that filters and protects electronics from voltage irregularities, operating efficiently without the need for active cooling.

How does it help with my audio/video use?

The AC-210A E provides clean power for audio/video equipment using Linear Filtering Technology and Series Multi-Stage Protection against surges. It eliminates AC line noise and safeguards electronics from voltage irregularities.
