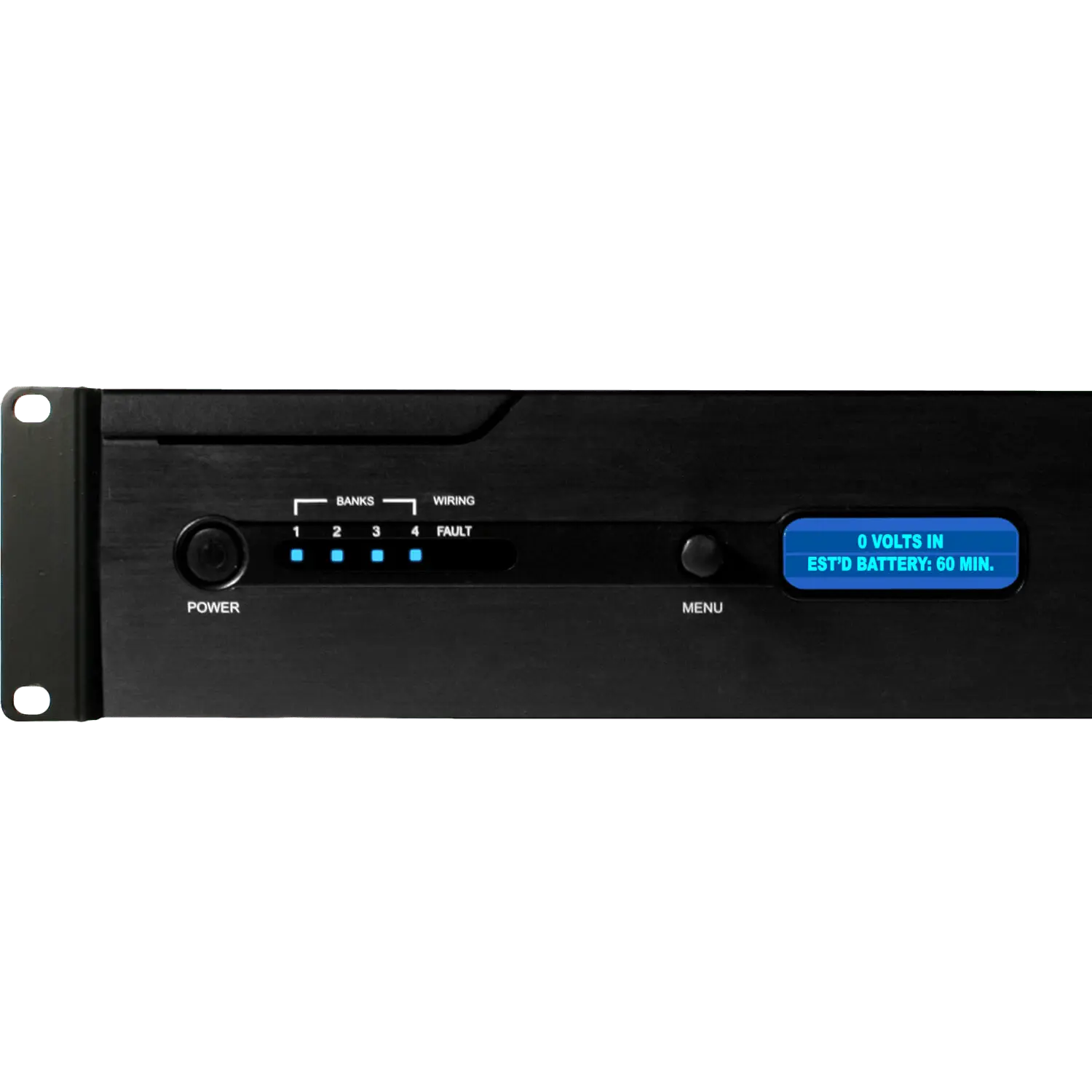

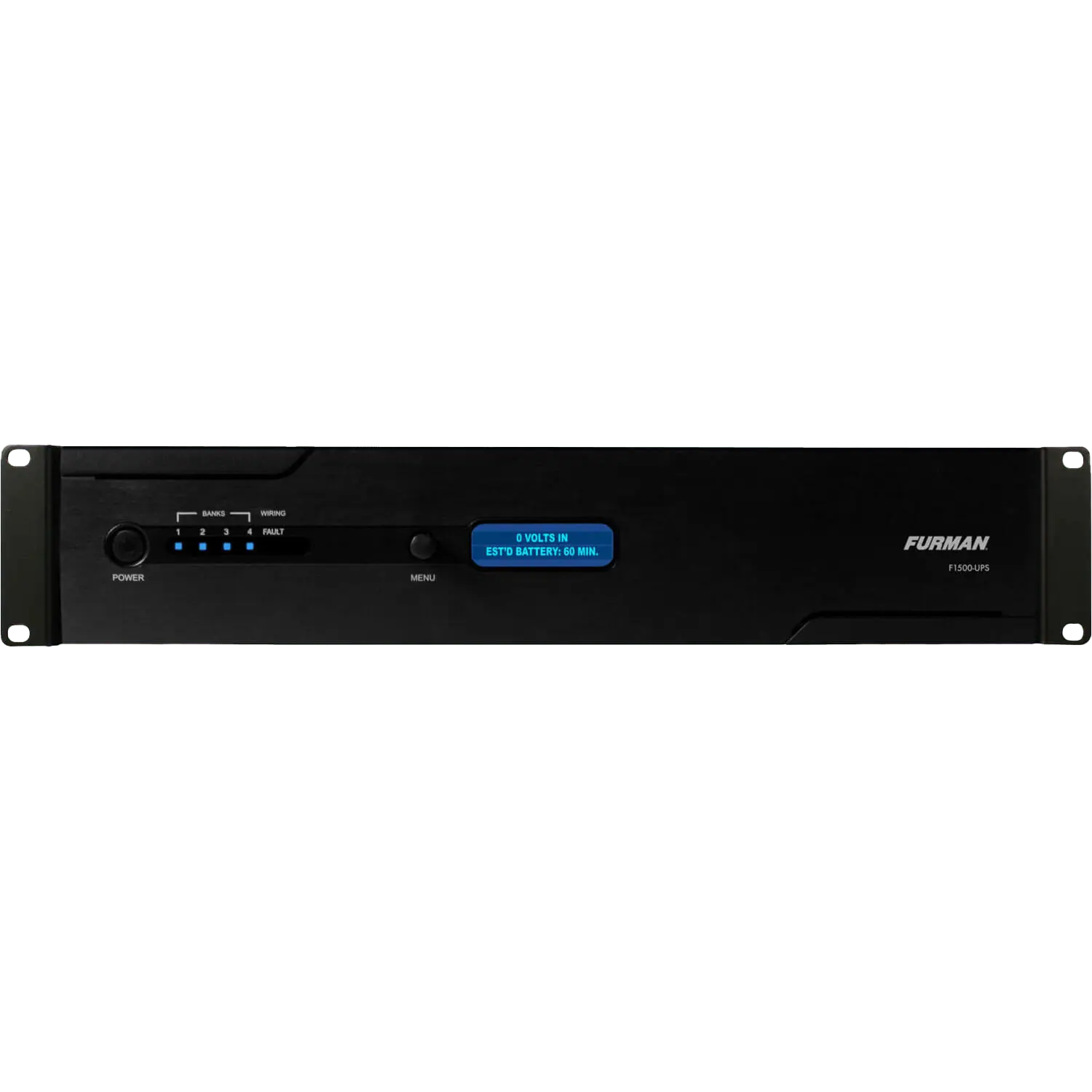

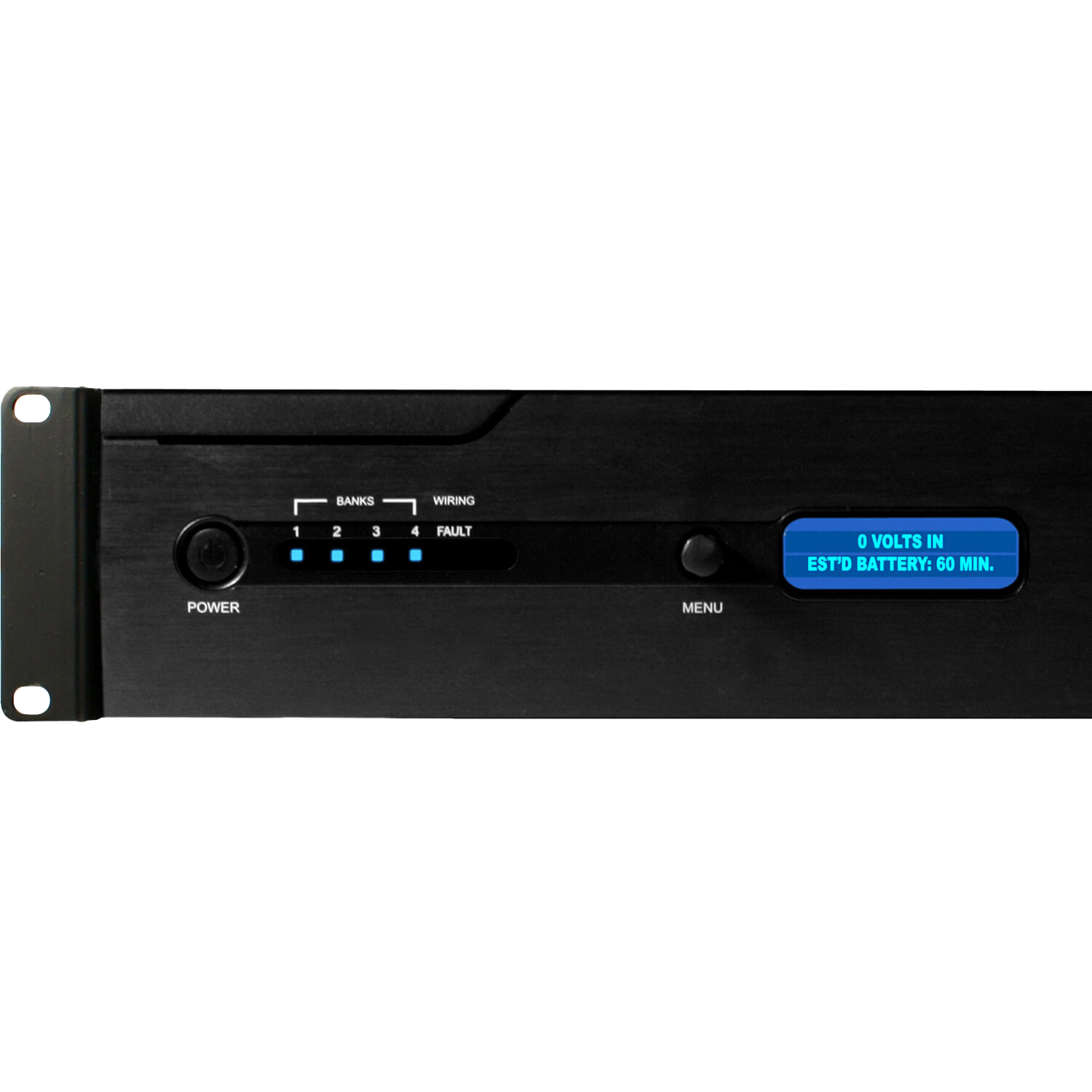

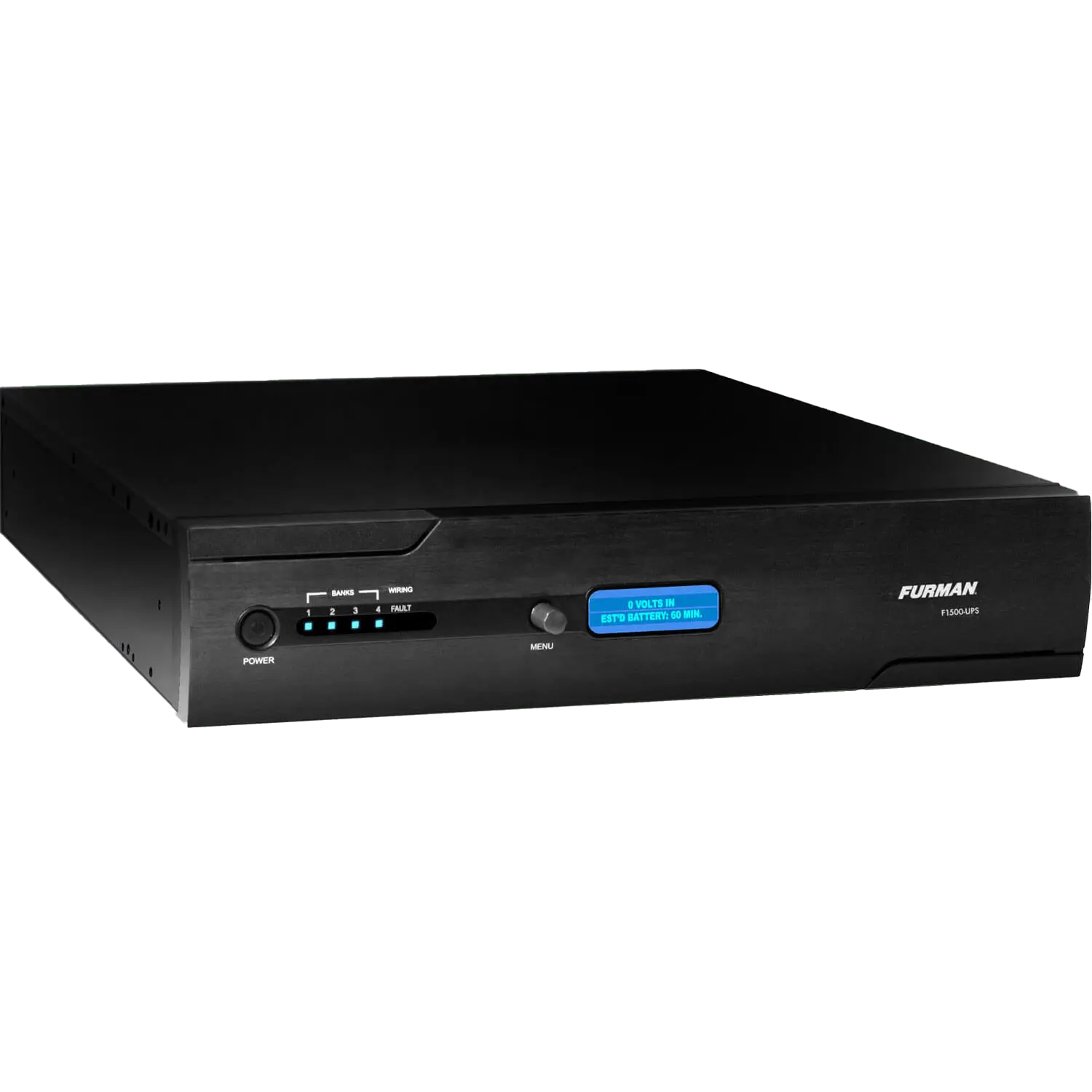

1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS)

Shop Manufacturer Direct

1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 2
1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 2
1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 1
1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 1
1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 3
1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS) - Furman Power, Voltage Regulator, Battery Backup 3

Shop Manufacturer Direct

1500VA, 2RU Uninterruptible Power Supply & Voltage Regulator (F1500-UPS)

⚡120 Volts

The Furman F1500-UPS battery backup is designed exclusively for audio/video professionals and home theater enthusiasts, addressing the limitations of traditional UPS units. While early UPS units were suitable for IT professionals, they lacked the necessary technologies for premium audio/video components. The Furman F1500-UPS offers unparalleled battery backup technology, specifically engineered to meet the demands of sensitive audio, video, and control systems.
$1,963.95
0
Save $0.00
Quantity

or purchase from an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Product Description

The Furman F1500-UPS battery backup is designed exclusively for audio/video professionals and home theater aficionados.

For decades, traditional audio/video components were simple analog devices designed to easily weather power outages of well over two seconds. Later, as computer and microprocessor based components gained in popularity, their extraordinary sensitivity to even a fraction of a second’s power loss was managed with traditional UPS (uninterruptible power supply) technology.



Unfortunately, these units were solely designed for the I.T. professional. Though they included many technologies and features appropriate to that application, they fell short for premium audio/video components. Though many of these manufacturers later recognized the ever-emerging professional audio/video, broadcast, and home theater market, their lack of experience led merely to a re-tooled chassis. These hastily produced UPS devices lacked the technologies necessary to truly optimize protection, performance, and control for today’s audio video components.



The Furman F1500-UPS more than fills this void, and offers your system unparalleled battery back-up technology, created from the ground up to meet the exacting demands of the world’s most sensitive audio, video and control systems!

Protection

Typical UPS systems feature antiquated surge suppression technologies that can cause as much damage and annoying lock-ups as they attempt to prevent. Only Furman offers battery back-up with our road-proven SMP non-sacrificial, zero ground contamination surge suppression technology and EVS Extreme Voltage Shutdown. After all, the most robust battery cannot function if the accompanying circuits are damaged. With Furman’s F1500-UPS, you can expect years of trouble free operation.

Filtration

Though many control devices are relatively immune to moderate levels of AC line noise, today’s more sensitive devices (such as DLP projectors and line-level signal processors) certainly are not. High-definition technologies have pushed resolution to levels so extreme that virtually any AC noise capable of coupling with your system’s signal will distort, mask, or destroy the performance advantages we all strive so hard to capture and reproduce. Once again, the F1500-UPS is different. While other UPS devices feature AC line filters suitable for an IT closet, only Furman employs our exclusive Linear Filtering Technology (LiFT) to four discrete isolated outlet banks. This advanced noise filtering technology assures that today’s ultra-wide dynamic range is maintained as it must be – pristine. Remember, less AC noise equals greater content, greater resolution, and higher definition.

True Sine Wave Output

The F1500-UPS provides True Sine Wave output when in battery backup mode, ensuring the utmost reliability to all connected equipment while running on battery power.

Expandability

At 1500VA, the F1500-UPS provides substantial backup time for most critical digital A/V components (see runtime chart). If more runtime is needed, 1500VA battery pack (BATT1500-EXT, sold separately) may be used to further increase runtime (up to four times) as the application demands.

Programmability & Control

Audio/video systems can vary greatly in their size and components, and as such, flexibility is needed in determining how a battery backup solution should function under different circumstances. Because of this, Furman has provided open source RS-232 control over four independent AC outlet banks, with a wide range of features to interface with an existing control unit. Dual programmable IR control allows the unit to send a shut down command to remote components in the event of a blackout – no more expensive projector bulbs to replace in the event of a blackout. Optional TCP/IP control (separate interface card, available Q4), offers remote control over any Internet connection via a truly plug-and-play, hosted, web-based graphical user interface, with full remote control and power monitoring functionality.


* As with any battery back up system, the battery pack must be replaced periodically (2.5 to 3 years typically)

Typical Backup Components

Given the nature of battery backup technology, high-current audio and video components such as power amplifiers, powered subwoofers, and high-wattage displays are not recommended for use with the F1500-UPS. Not only will these components drain battery power quite rapidly, line impedance will be raised due to the F1500-UPS’s (or any) AVR and AC to DC inverter, which can induce current compression and noticeably diminish performance with high-current A/V equipment. The following components are ideal for use with the F1500-UPS:



  • DAWs
  • Satellite Receivers
  • Cable Boxes
  • Digital Video Recorders
  • Media Servers
  • External Hard Drives
  • Digital Mixing Consoles
  • Lamp Based Video Displays
  • Control Systems

    For power management of other components, Furman recommends Classic or Prestige Series Power Conditioners. For high-current components such as power amplifiers and powered subwoofers, solutions featuring Furman’s exclusive Power Factor Technology are ideal.

Approximate Run Time, 1500VA **
Satellite Reciever or Cable Box = 80 Minutes
Control System + Media Server = 40 Minutes
Digital Mixing Console (24 channel) = 20 minutes
DAW Computer + Digital I/O + External Hard Drive + 24” LCD Monitor = 7 minutes
** These run times should be used as a guideline only and are dependant ondevice and usage.

Technical Specifications

Family

F-Battery

Line Voltage:

120 Volts

Number of Outlets

8

Number of Isolated Banks

2

Outlet Descriptions

All 8 outlets surge protected, linearly filtered, and backed up

Rack Mountable

Yes

Rack Ears Included

Yes

Front Panel Meter(s)

LCD displays status and menu navigation items

Front Media Light(s)

No

Control

Remote control through RS-232 interface card or via internet with BlueBOLT-CV1 card (sold separately)

AC Power Cord

Heavy-duty captive power cord

Dimensions

Heavy-duty captive power cord

Weight

17″ W (19″ w/ rack ears) x 19.2″ D x 3.5″ H (4″ tall with feet installed)

AC Power Cord

72 lbs.

UPC

654061028185

Battery Backup Specifications

Input Frequency

47 – 63 Hz

Regulation Capture Range

96 – 135V (Sensitive Mode), 93 – 142V (Standard Mode)

Output Frequency

60 Hz ± 1%

UPS Output Capacity

1500VA, 900W @ 0.6pf

Regulation Output Range

120V ± 5% (Sensitive Mode), 120V ± 10% (Standard Mode)

UPS Backup Time (Full Load)

12 minutes

UPS Backup Time (Half Load)

32 minutes

Transfer Time

< 4ms

AC Protection Specifications

AC Protection Technology

Non-sacrificial SMP (Series Multi-Stage Protection)

Over-Voltage Shutoff

150V ± 5V (fast rise), 140V ± 5V (slow rise)

Maximum Current Rating

12 Amps

Filtration

Filtration Technology

Linear Filtering Technology (LiFT)

Filtration Rating

  • 10 dB @ 10kHz
  • 40 dB @ 100 kHz
  • 50 dB @ 500kHz

3 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Download

Datasheet

Download

Declaration of Conformity

Download

Special Features

Uninterruptible Power Supply
and Voltage Regulator

Surge Protection

Furman’s exclusive SMP technology provides the highest level of surge & spike protection available

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions

Diagnostic Indicators

Digital indicators provide information on power quality and operational status of unit

Custom Programming

Custom programming provides control of unit via RS-232 card (included) or optional TCP/IP interface card (sold separately)

Eight Total Outlets

Eight total outlets rear outlets in isolated banks (Critical and Non-Critical loads)

Power Control Software

Easy to use power control software assists you in maximizing the performance of your UPS

Battery Backup

1500VA true sine wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully

Critical Load Management

Critical Load Management prioritizes the allocation of temporary power to connected equipment

Infrared Control

Dual Learning IR Blasters allow safe shutdown of remote components

BlueBOLT® Compatible

BlueBOLT® TCP/IP interface provides remote control to reboot components, power equipment on or off, and monitor power quality from anywhere in the world

12 AMP Rating

12 Amp rating featuring a circuit breaker for added protection

Standard Voltage Regulation

Standard level automatic voltage regulation (AVR) delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities

Optional Battery Extension Pack

External battery packs (sold separately) are available and may be daisy-chained to the F1500-UPS increase battery capacity
