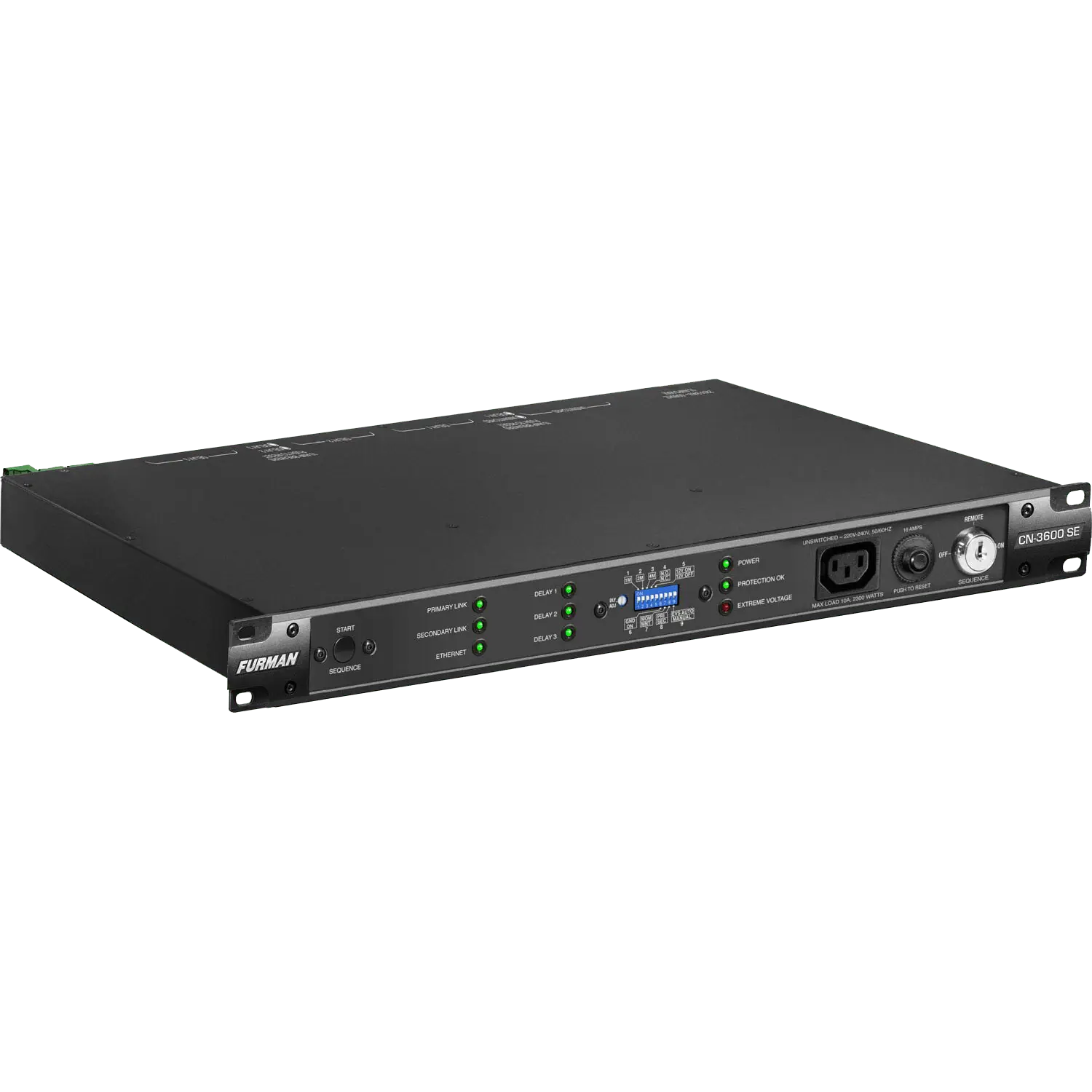

16A SmartSequencing Power Conditioner, 230V (CN-3600S E)

⚡220-240 Volts

Designed for Commercial A/V Installations in 220V-240V regions, the CN-3600 SE combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, and AC noise filtration.

Where to Purchase
Find a Retailer Near You

Become an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Product Description

Designed for Commercial A/V Installations in 220V-240V regions, the CN-3600 SE combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, and AC noise filtration.



The new CN-3600 SE is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.



In addition, the CN-3600 SE offers robust control options, equipped with RS-232 ports and command sets for integration with control systems.

Technical Specifications

Family

Contractor Series 240V

Line Voltage

240 Volts

AC Voltage Input Range

180-270VAC, 50/60Hz

AC Cord

1.5mm² x 3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug

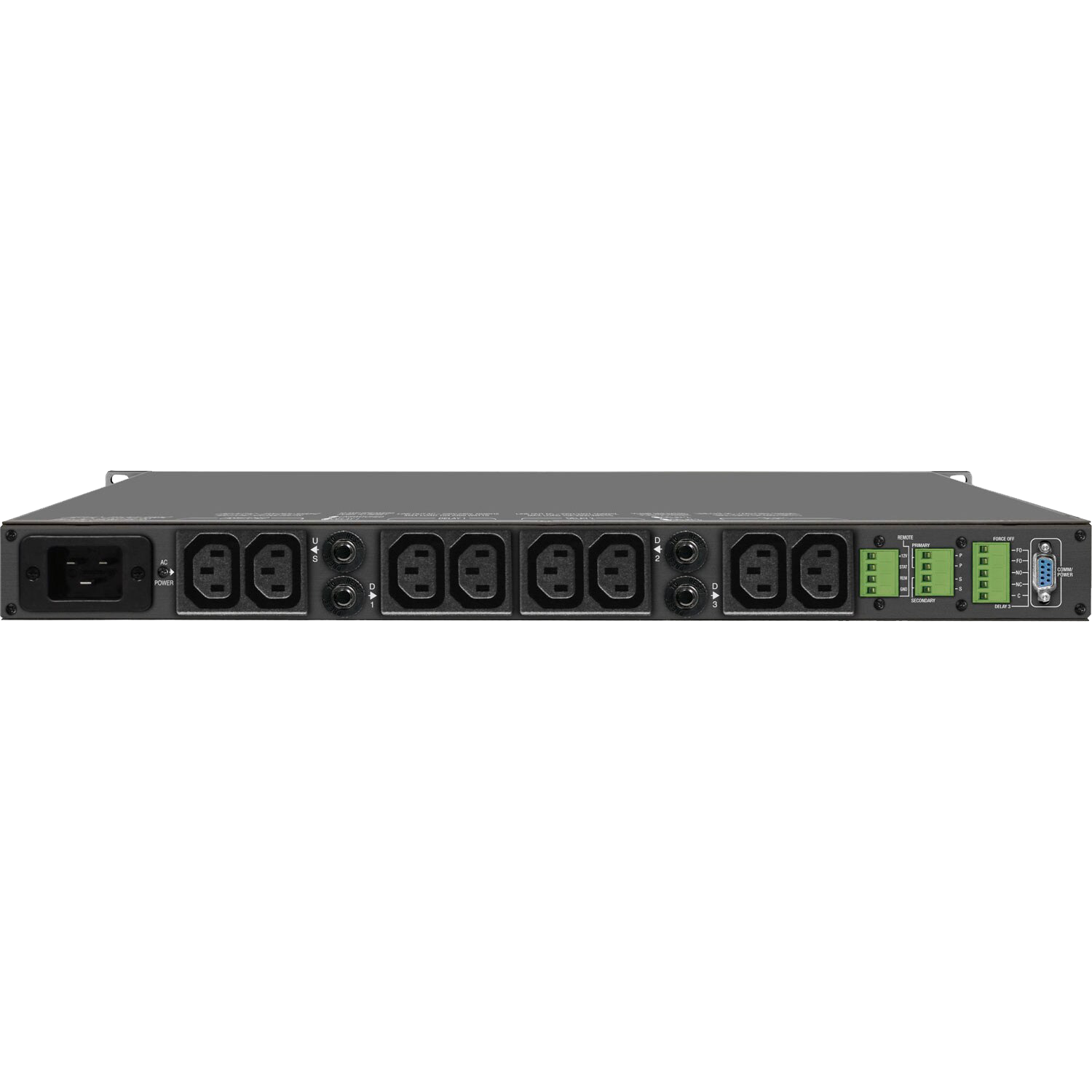

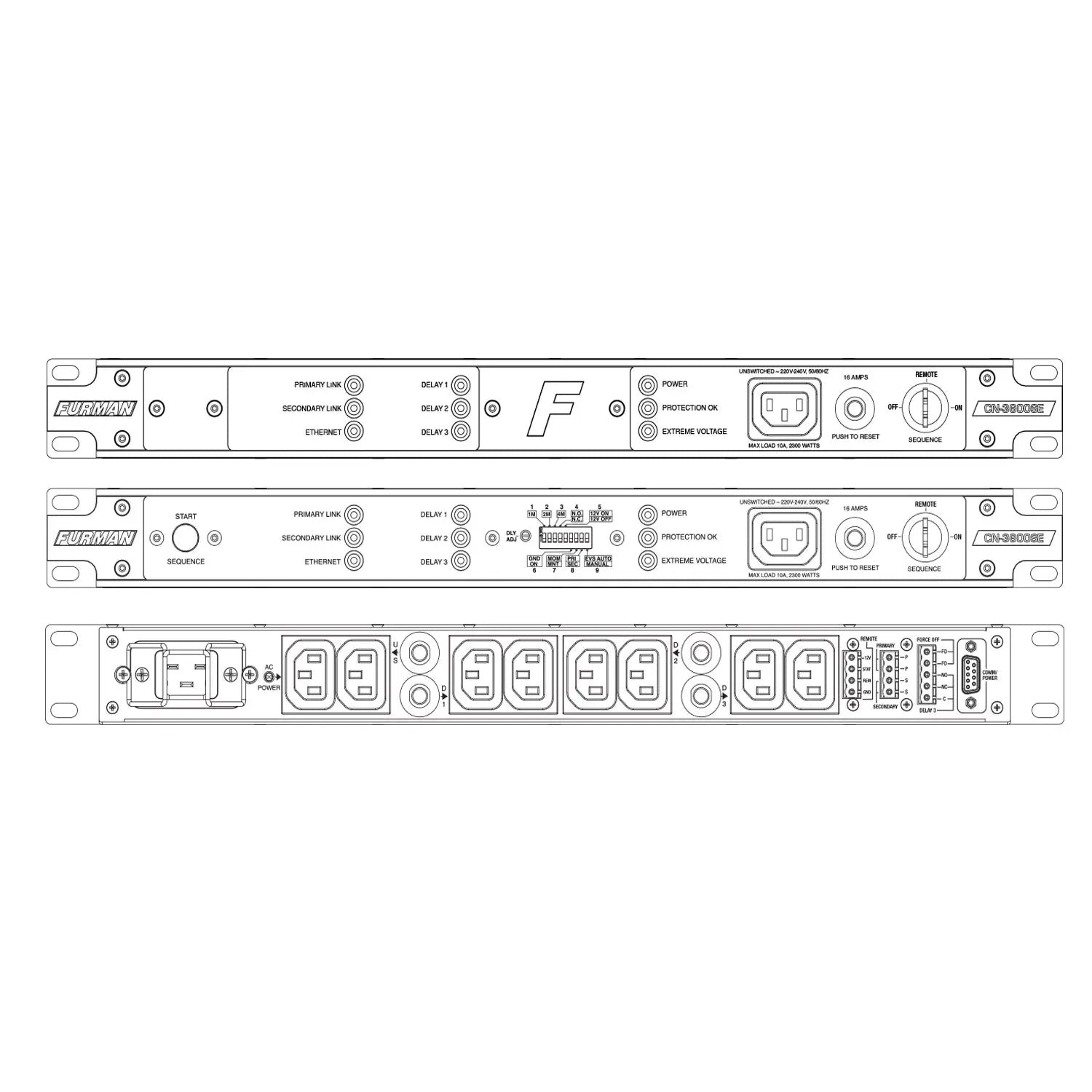

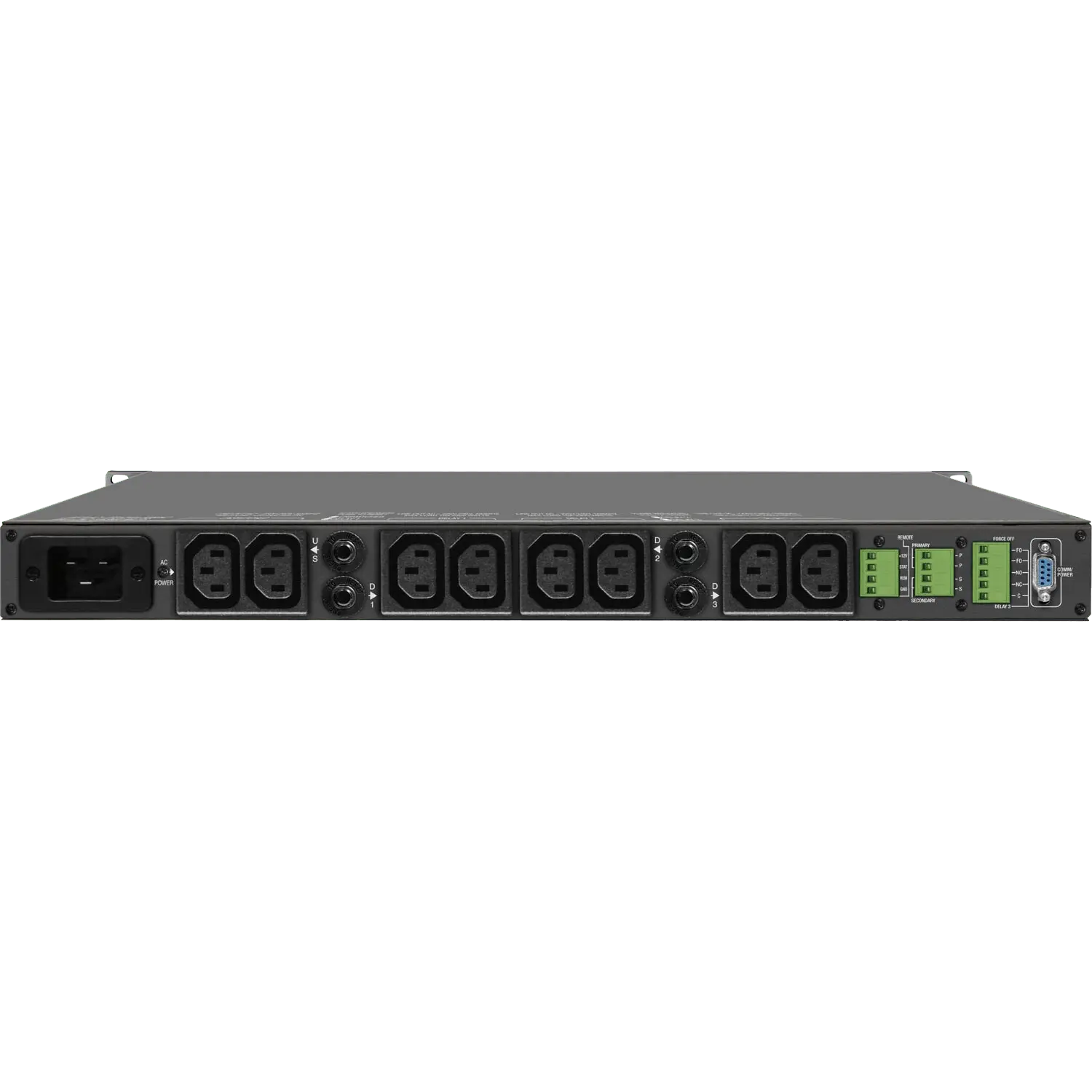

Rear Panel Outlets

1 IEC C13 pair (Unswitched), 3 IEC C13 pairs (Sequenced, each pair controlled by separate relay)

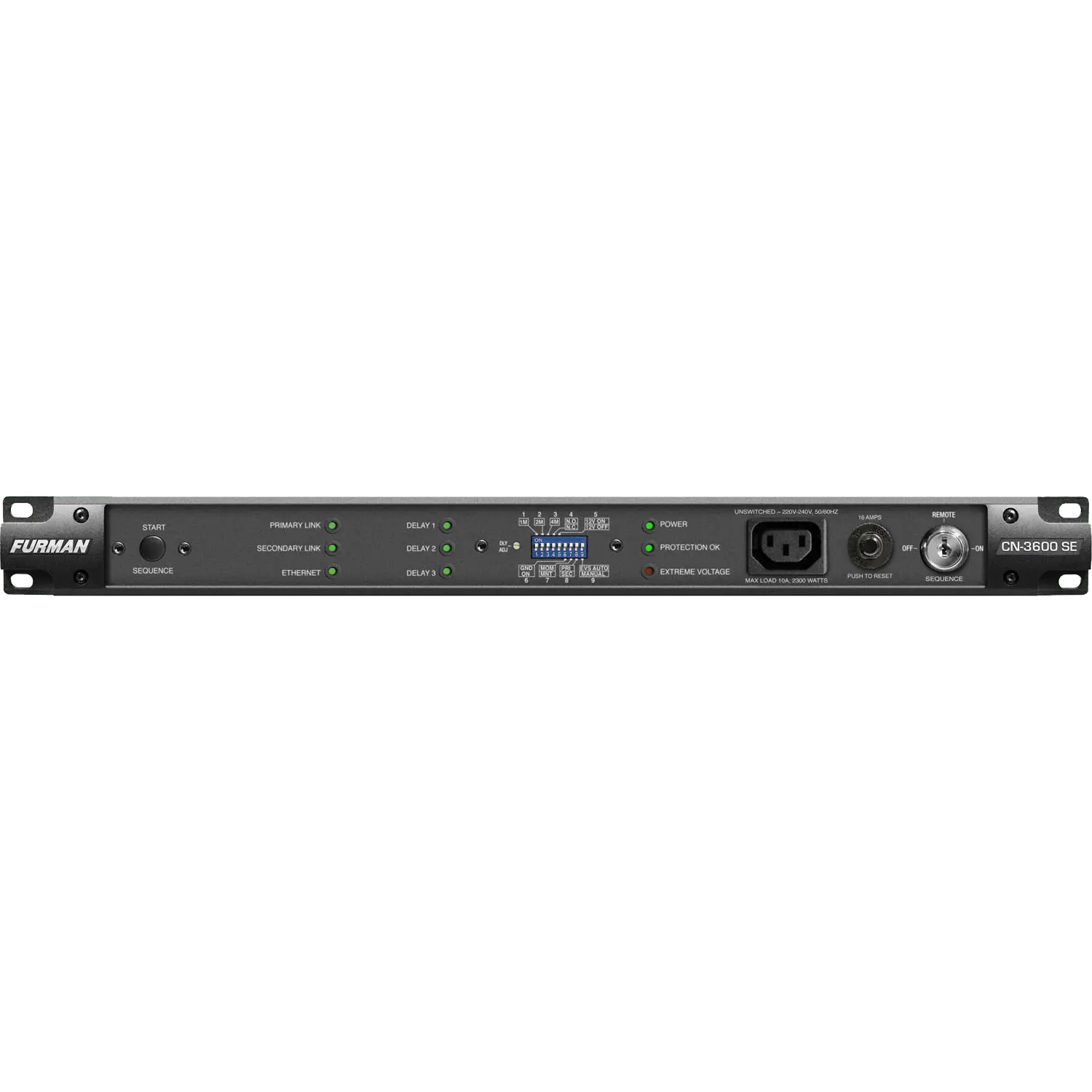

Front Panel

1 IEC C13 (Unswitched)

Surge/Under-Overvoltage Protection

AC Surge Protection Series Multi-Stage Protection SMP

Spike Protection Mode

Line to neutral, zero ground leakage

Spike Clamping Voltage

375V peak @ 6,000 volts/3,000 amps

Response Time

1 nanosecond

Maximum Surge Current

6,500 Amps

AC Undervoltage Protection

EVS, 175VAC±3VAC

AC Overvoltage Protection

EVS, 275VAC±5VAC

AC Overvoltage Reset Modes

Manual and Auto-reset (configurable)

AC Filtering

LiFT

Noise Attenuation

Linear, 10dB @10KHz, 40dB @100KHz, 50dB @500KHz

Operating Temperature Range

5°C (40°F) to 40°C (105°F)

Humidity Range

<90% rH (Relative Humidity)

Keyswitch

Front panel, 3-position keyswitch (On, Off, Remote)

Keys

Included, 1 pair

Pushbutton Switch

Front panel, hidden by security cover

Circuit Breaker

Front panel, pushbutton, 20A Thermal Breaker

Front Panel Diagnostic Indicators

Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage

Front Panel DIP Switches

Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Potentiometer

Front panel, hidden by security cover, fine-tune delay adjust

Control/Status/Triggering (Rear Panel)

Remote Terminal +5-30VDC In, 12VDC (12mA) Out

SmartSequencing

Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal

Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)

Force Off/Delay 3 Terminal

Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)

RS-232 Compatible

Yes, DB-9 Connector

Voltmeter

Available with RS-232, ± 2VAC accuracy

Ammeter

Available with RS-232, ±1A accuracy

Power Consumption (No Load)

10 Watts

Safety Agency

NRTL-C, RoHS Compliant

UPC

654061028499

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – https://www.P65Warnings.ca.gov

15 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Download

Datasheet

Download

Command Set and Protocol Spec

Download

Warranty

Download

Declaration of Conformity

Download

Special Features

16A SmartSequencing Power Conditioner

Surge Protection

Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available

Noise Filtration

Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity

Voltage Protection

Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods

SmartSequencing™

SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key

Diagnostic Lights

Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator

16 Amp Output Current

16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker

Remote Access (RS-232)

RS-232 compatibility & command set provide integration with control systems, open source and control programming

Nine Total Outlets

The CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet
