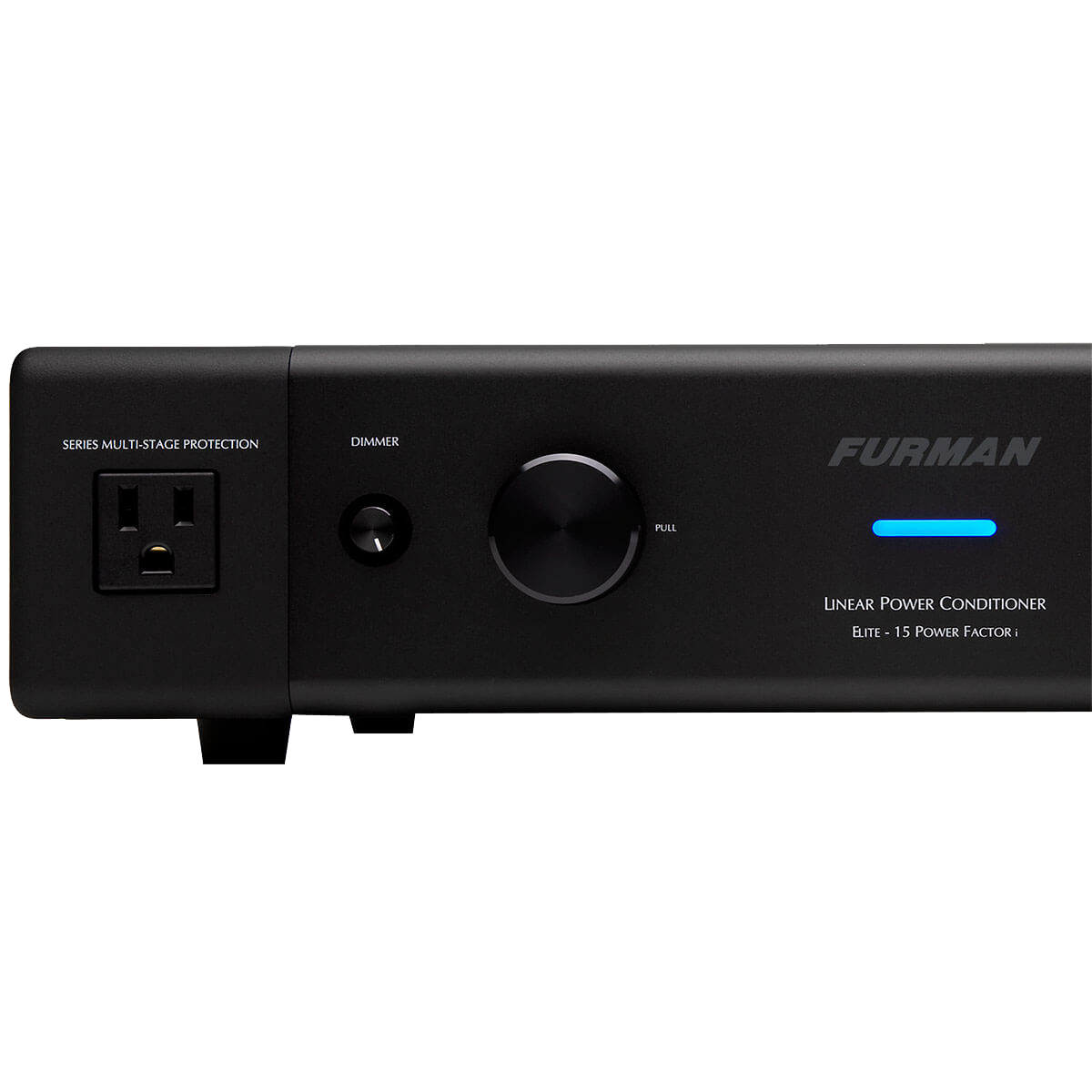

Conditioner Power HT 15A Power Factor (ELITE-15 PF I)

Conditioner Power HT 15A Power Factor (ELITE-15 PF I)

120 Volts

For over 40 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. Though the need for pristine AC power is nothing new, the Elite-15 Power Factor i's technology and its unique implementation are revolutionary and without peer.

$1,081.95
0
Save $0.00
Quantity

or purchase from an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Product Description

For over 40 years, Furman has pioneered the development of AC power products for the most demanding audio, video, and broadcast professionals. Though the need for pristine AC power is nothing new, the technology in the Elite-15 Power Factor i and its unique implementation are revolutionary and without peer.



The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today’s home theater. Our solution-based technology, extensive engineering expertise, and robust build quality have answered the challenge of today’s corrupted power lines, leading to the creation of the Elite-15 PF i.



Today’s power lines are plagued with RF and EMI noise. When connecting sensitive equipment to your home’s power outlet, AC noise couples into your system’s critical components, masking low-level signals and crippling performance. This low-level content is critical because it relays the crucial harmonics and ambiance in audio, as well as the depth and clarity in video. With exclusive Linear Filtering Technology, televisions, projectors, DVD players, amplifiers, and processors are fed linearly filtered AC power. This dramatically reduces noise, ensuring consistent peak operation regardless of load conditions or the time of day. For the first time, you will see and hear your theater or audio system as it should be — uncompromised.



Another critical feature is our exclusive Series Multi-Stage Protection. This virtually maintenance-free surge suppression assures the highest level of AC protection possible, without sacrificing itself when the offending surge is severe — no damaged equipment, no service calls, no downtime. Further, our famous retractable front panel LED lamps allow easy viewing of either a rack or cabinet full of equipment, even when your theater lights are off.



The Elite-15 PF i also features remote control capability via 12V triggering, compatible with the 12V triggering devices commonly found in power receivers and pre-amp processors. Additional products (such as a remote subwoofer) can be daisy-chained from the 12V output jack for an additional triggered unit. The 12V triggering feature may be bypassed if desired.



At the center of the Elite-15 PF i is unique Power Factor Technology. For the first time, low-level analog, digital, and video components are not modulated or distorted by the power amplifier’s extreme AC current demands. Further, the power amplifier is fed a highly filtered, extremely low-impedance supply of AC power. The Elite-15 PF i, in fact, has in excess of 3 Amps of continuous current reserve (over 45 amps peak charge) for the most extreme peak power demands. This technology enables power amplifiers and powered subwoofers to operate at peak efficiency, reaching levels of performance previously unattainable.



No longer will your amplifier’s performance be at the mercy of your home’s incoming AC power or inferior AC protection/filtering devices. The net effect is as if your power amplifier virtually doubled in power and improved immeasurably in quality.



When employing the Elite-15 PF i, you will immediately notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity. Sonic transients will be startlingly fast with bass fundamentals that shake foundations with their weight and visceral impact. Mid and high frequencies will bloom with sweet, non-glaring ease as imaging improves dramatically, all the while remaining true to your system’s inherent virtues.

Technical Specifications

Family

Elite Series

Line Voltage

120 Volts

Number of Outlets

13

Number of Isolated Banks

3

Outlet Description

1 (linearly filtered outlet, front panel)
4 (linearly filtered audio-video outlets, 2 switched via 12V trigger)
4 (linearly filtered outlets with additional ultrasonic filtering for video components, 2 switched via 12V trigger)
4 (Power Factor Technology amplifier outlets, 3 amps RMS reserve, reactive load, over 45 amps peak charge, 2 switched with 5 second delay via 12V trigger)

Rack Mountable

Yes

Rack Ears Included

Yes

Front Panel Meter(s)

No

Front Media Light(s)

2 Retractable LED lamps

Control

On/Off switch and light dimmer knob on front panel, 12 Volt triggering for remote control

Voltage Regulation

No

Compliance

NRTL-C

USB Charging

N/A

Low Voltage Trigger

12 V, In/Out

Dimensions

4" H x 17" W x 14.75" D (Standard 2 RU height without feet)

Weight

15 lbs

Power Consumption

12 Watts for display and control circuits independent of actual load

AC Protection

AC Protection Technology

  • Extreme Voltage Shutdown
  • Series Multi-Stage Protection
  • Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff

85V

Over-Voltage Shutoff

140V ±3V

Maximum Current Rating

15 Amps

Initial Clamping Level

188 VAC peak @ 3,000 Amps

Filtration

Filtration Technology

LiFT

Filtration Rating

  • >40 dB from 10 kHz to 100
  • >80 dB from 100 kHz to 1 GHz
    (Linear attenuation curve from 0.05 to 100 ohms line impedance)

Signal Line Protection

  • 1 Tel
  • 3 Cable/Satellite

Voltage Protection Rating

UL 1449 3rd Edition, 3,000A

UPC

654061027829

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

3 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Datasheet

Special Features

Conditioner Power HT 15A Power Factor

SMP provides the highest level of protection available

LiFT significantly reduces AC line noise

E.V.S. protects equipment from dangerous overvoltage conditions

Retractable LED lamps illuminate a cabinet or rack full of equipment

Zero ground contamination circuitry assures delivery of pure AC

Power Factor Technology provides over 45 amps peak charge surplus current for power-starved amplifiers

12 volt triggering for remote control
