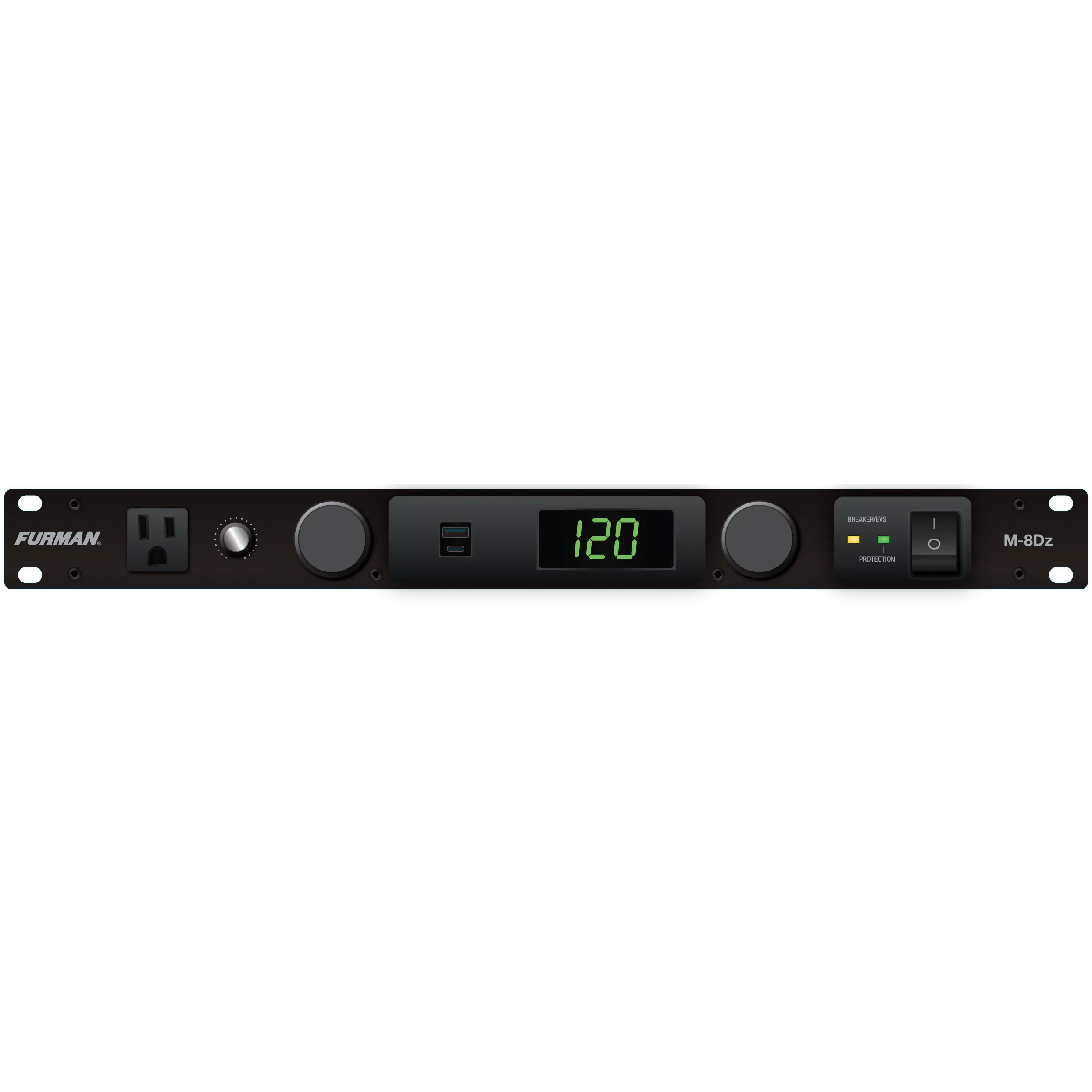

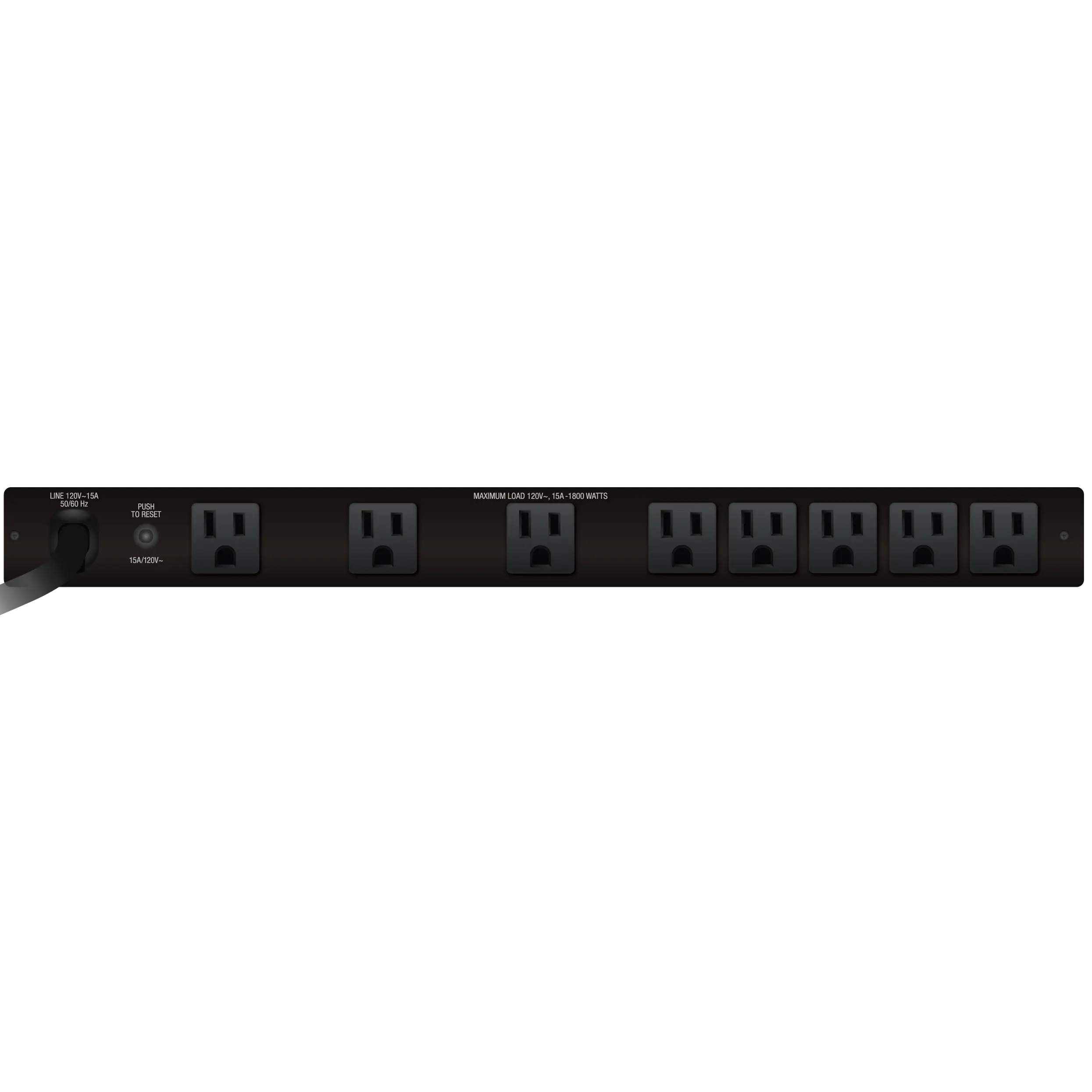

Merit Z Series M-8Dz 15A Power Conditioner with Pull-out Lights, Digital Voltmeter, and EVS Surge Protection

Shop Manufacturer Direct

Merit Z Series M-8Dz 15A Power Conditioner with Pull-out Lights, Digital Voltmeter, and EVS Surge Protection Furman

Shop Manufacturer Direct

Merit Z Series M-8Dz 15A Power Conditioner with Pull-out Lights, Digital Voltmeter, and EVS Surge Protection

Name: Merit Z Series M-8Dz 15A Power Conditioner with Pull-out Lights, Digital Voltmeter, and EVS Surge Protection
Brand: Furman Pro
SKU: M-8Dz
Price: 9999.99 USD
Availability: OutOfStock

⚡120 Volts

M-8Dz is the premium power conditioner in the Merit Z Series, offering a complete power management solution with monitoring capabilities. It includes all the features of the M-8Lz: nine outlets, a 15-amp rating, standard surge protection, fast-charging dual USB-C and USB-A ports, noise filtration, and two dimmable, pull-out light fixtures. What sets the M-8Dz apart is the addition of a dynamic, color changing three-digit LED voltmeter that displays incoming AC voltage in real time. This allows you to monitor power quality from your wall outlet, which is especially useful in bars, clubs, and other venues where AC power can be unreliable. Furman's Extreme Voltage Shutdown (EVS) technology works alongside the voltmeter to automatically disconnect during dangerous over or under voltage events, protecting your connected equipment.

Coming Soon

New Arrival

Merit Z Series — Power Conditioners

Furman protection at an affordable price. Extreme Voltage Shutdown, fast charging Dual USB-C and USB-A, advanced surge defense, Color-Changing Pull-Out Lights and Dynamic Voltmeter for your rack.

Preorder Now! Ships Soon.

Clean Power

Description
Specifications
Warranty
Resources

Applications

Live Sound & Touring Rigs

Monitor incoming voltage on stage to catch power issues before they damage equipment, with pull-out lights illuminating gear in dark venues

Installations (Bars, Clubs & Venues)

The LED voltmeter provides real-time AC power monitoring in older venues where power can be unpredictable, while EVS disconnects during dangerous voltage events

Recording Studios & Home Studios

Track power quality over time with the built-in voltmeter, while pull-out lights illuminate rack equipment for easy adjustments

Broadcast & AV Installations

Visual voltage monitoring helps technicians identify problematic circuits, with EVS protecting critical equipment from power anomalies

Commercial & Industrial Racks

Front-panel diagnostics, voltmeter, and "Protection OK" indicator provide comprehensive power status at a glance, eliminating guesswork during troubleshooting

Technical Specifications

Maximum Output Current

15 Amps

Line Cords

3x14 AWG

Operating Voltage

120V~50/60Hz

Spike Protection Mode

Line to neutral

Energy Dissipation

126 Joules

Peak Impluse Current

6500 Amps

Maximum Continuous
Operating Voltage

225 VAC RMS

Maximum Clamping Voltage

455 Volts

Noise Attenuation

Greater than 20dB, 200kHz-10MHz

Under-voltage Shutoff

85VAC +/- 5%

Over-voltage Shutoff

140VAC +/- 5%

Weight

7.5 lb/3.4 kg

Dimensions

1.75”h x 19”w x 7.5”

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

3 Year Limited Warranty

Important Note for Internet Purchasers

YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
Note: Furman products purchased through auction sites DO NOT have a valid warranty.

Title

SAVE YOUR SALES RECEIPT

The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.
