Merit Z Series M-10z E 10A Power Conditioner with EVS Surge Protection and USB Charging

⚡220-240 Volts

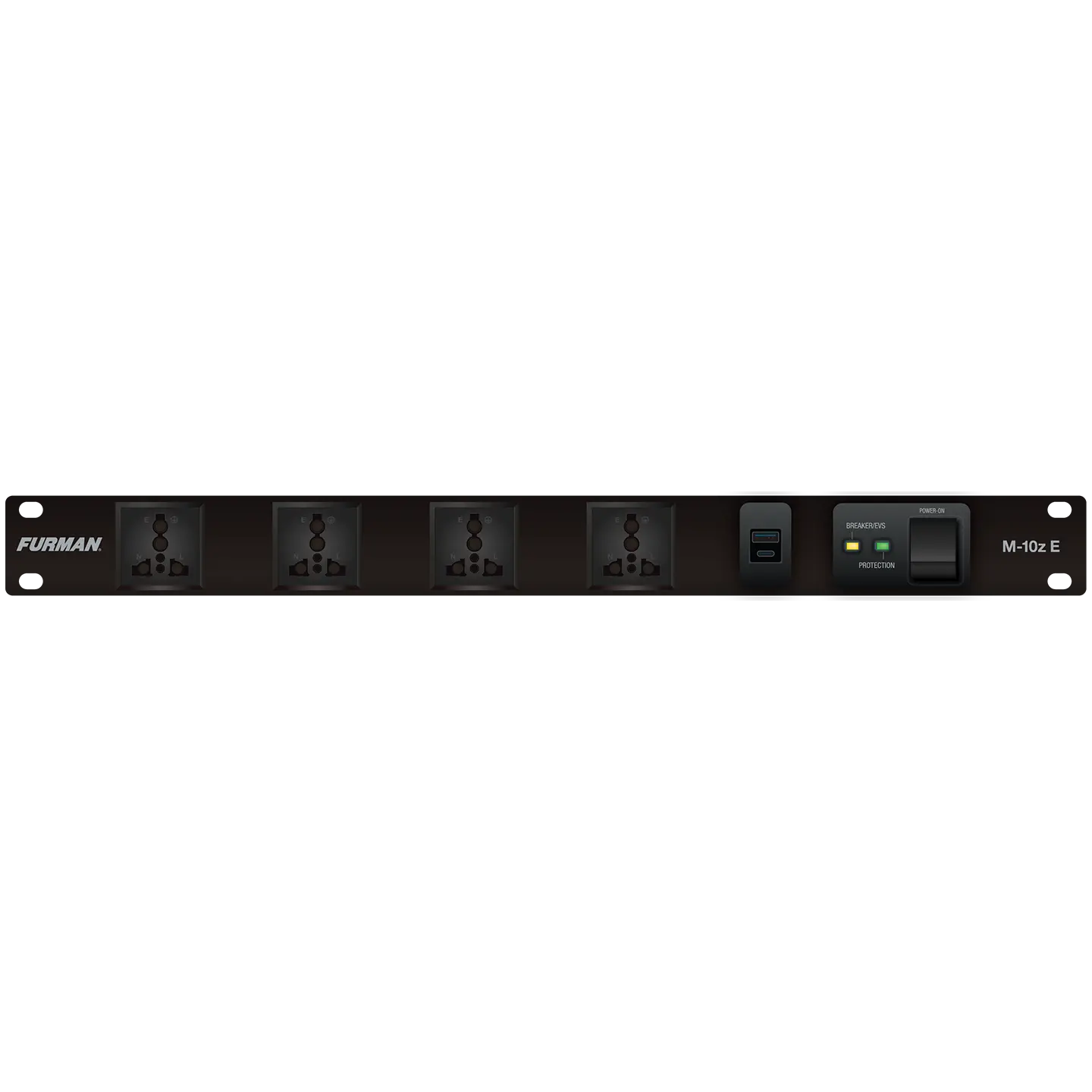

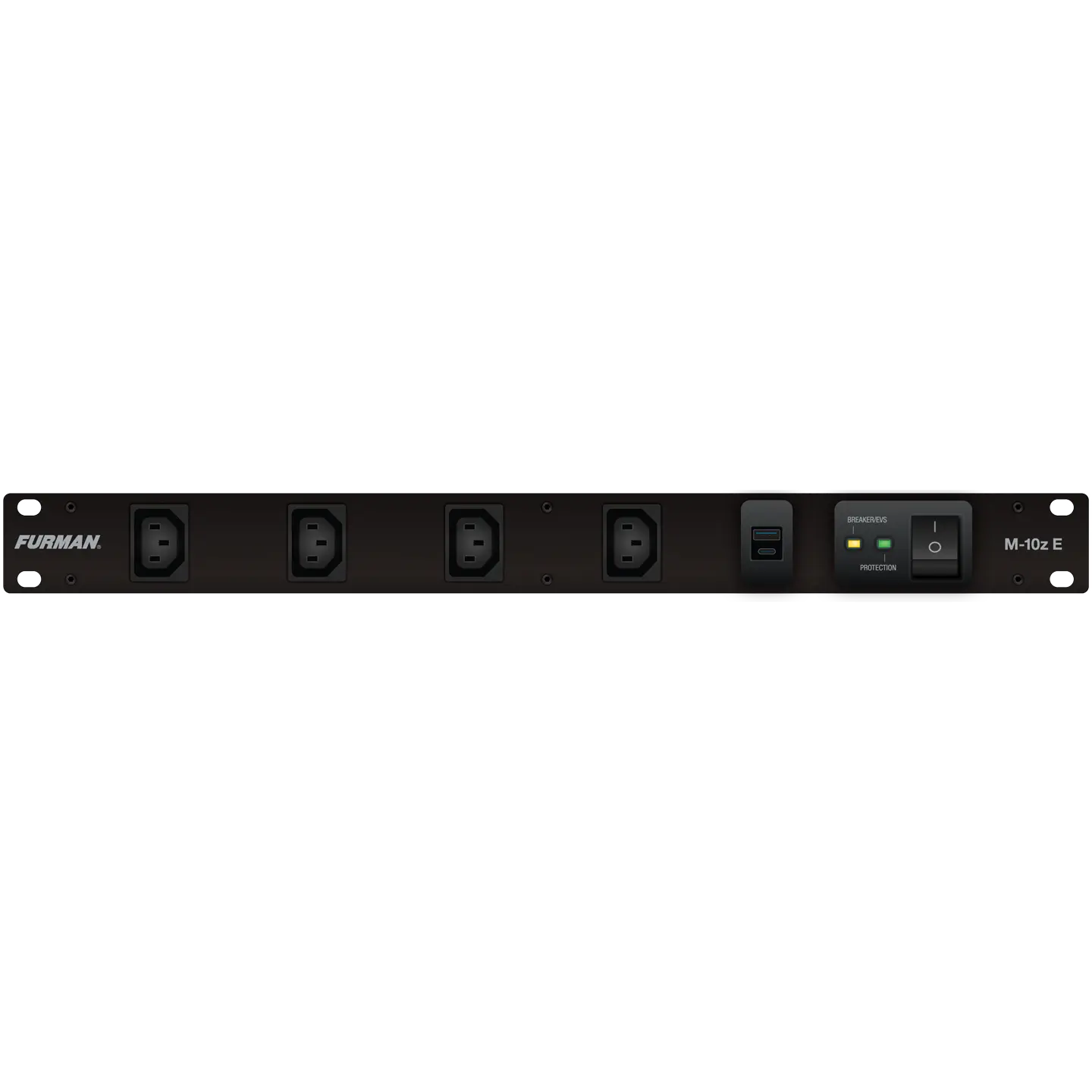

The M-10z E is the essential power conditioner in the Merit Z Series for 230V markets, delivering trusted surge protection and clean power at an accessible price point. It features Extreme Voltage Shutdown (EVS) technology that continuously monitors incoming AC and instantly disconnects during dangerous over or under voltage events to protect your connected equipment. Built-in standard-level surge protection with a "Protection OK" indicator, combined with AC noise filtration, reduces RFI/EMI interference for cleaner, more stable power. Convenient front-panel USB-C (5V/3A) and USB-A (5V/2.4A) fast charging ports keep phones, tablets, and wireless accessories powered right from your rack.

Where to Purchase
Find a Retailer Near You

Become an Authorized Retailer

Special Features

6A Prestige Voltage Regulator

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions

True RMS Voltage Regulation

True RMS Voltage Regulation delivers a stable 230/240 volts of AC power to protect equipment from problems caused by AC line voltage irregularities

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised

Surge Protection

Exclusive SMP technology provides the highest level of surge & spike protection available

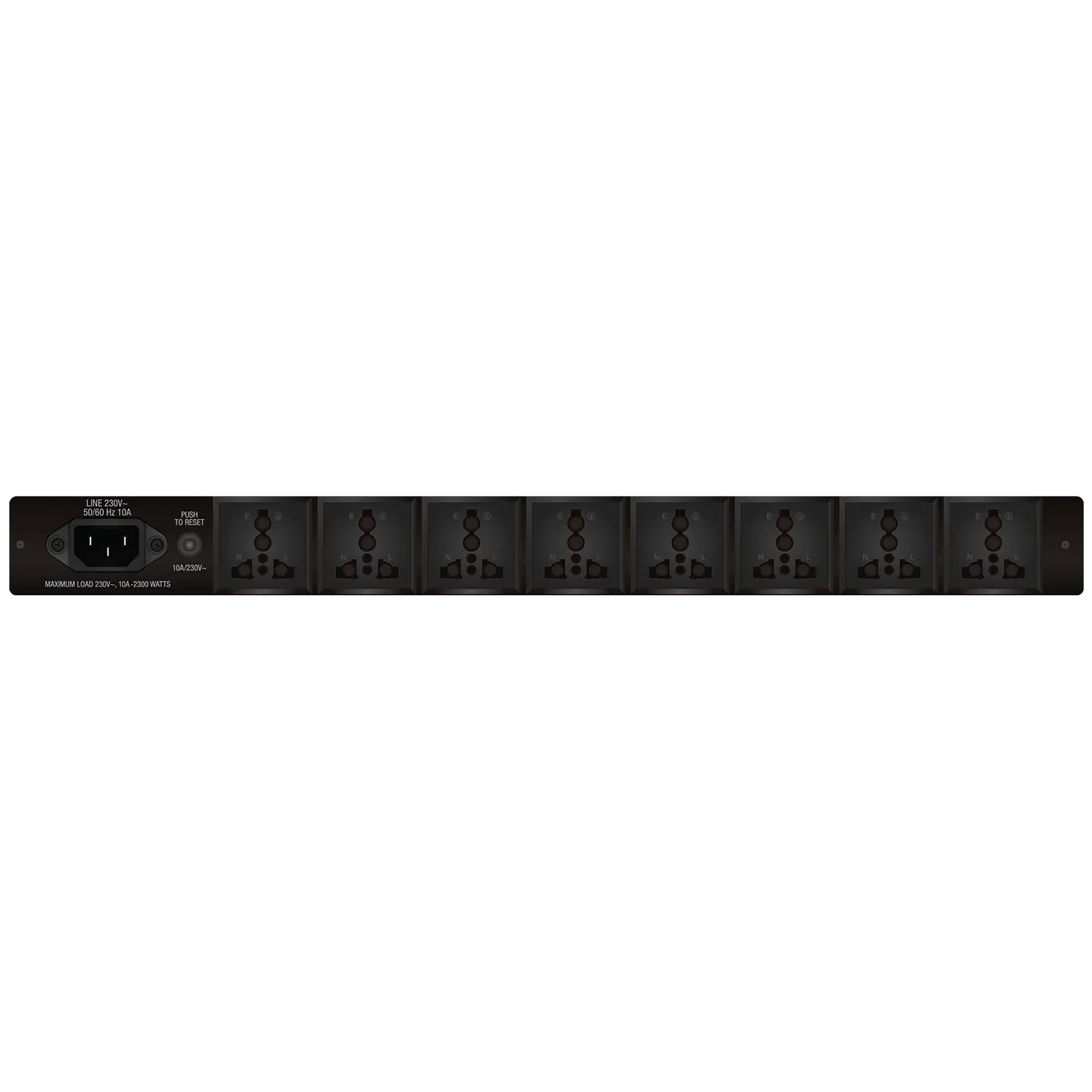

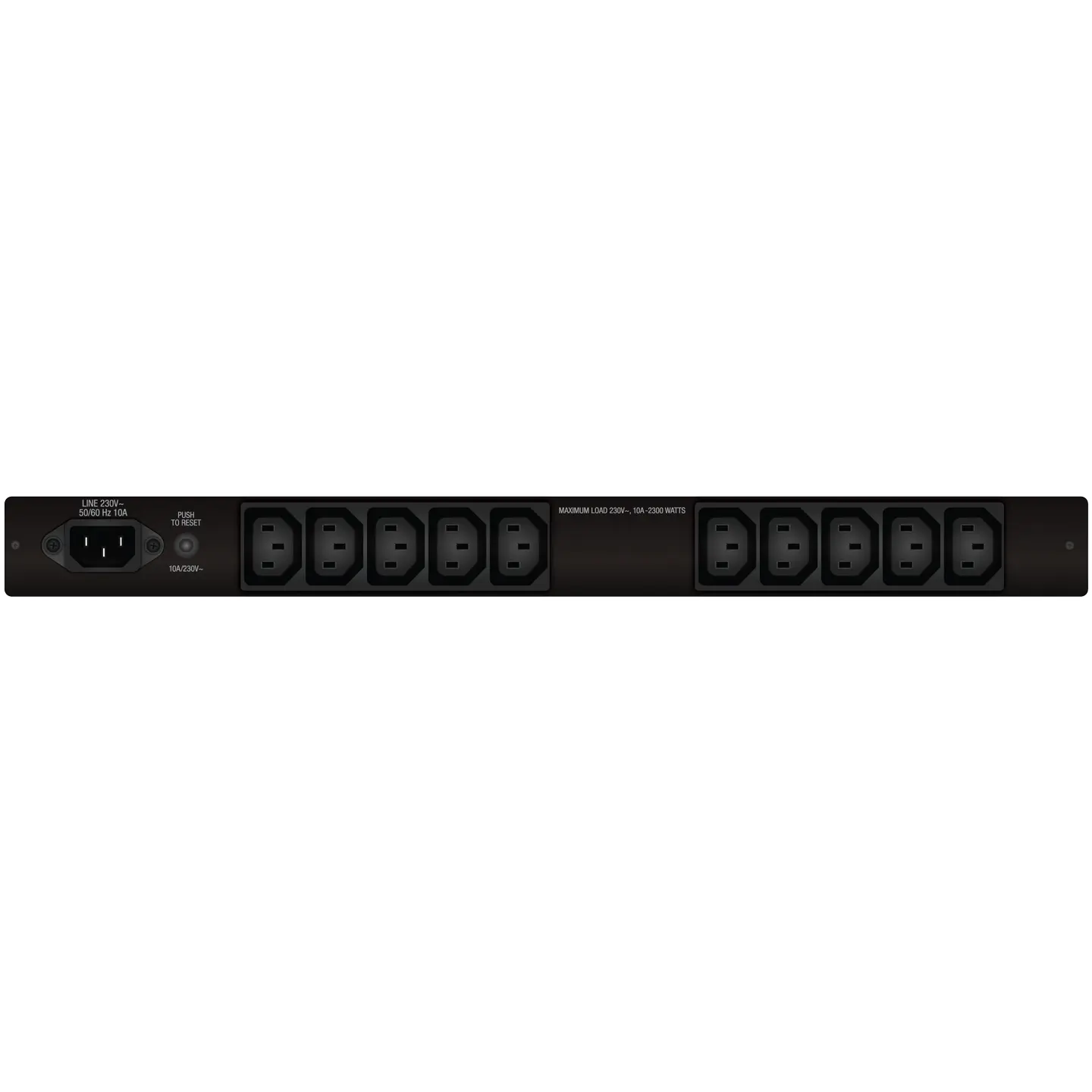

11 Total Outlets

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination

Voltmeter / Ammeter

Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw

USB Charger

Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination

6 AMP Rating

6 Amp rating featuring a high inrush magnetic circuit breaker for added protection
New Arrival
Merit Z Series — Power Conditioners
Furman protection at an affordable price. Extreme Voltage Shutdown, fast charging Dual USB-C and USB-A, advanced surge defense, Color-Changing Pull-Out Lights and Dynamic Voltmeter for your rack.
Preorder Now! Ships Soon.
Clean Power

  • Description

  • Specifications

  • Warranty

  • Resources

Applications

Recording Studios & Home Studios

Clean, filtered power eliminates RFI/EMI interference for quieter audio, while EVS protection safeguards mixers, interfaces, and outboard gear from dangerous voltage events.


Live Sound & Touring Rigs

The 10A design supports rack-mounted processors and related equipment, with wall-wart spacing accommodating bulky power supplies without blocking adjacent outlets.


Installations (Bars, Clubs & Venues)

EVS protection defends against unpredictable AC power in older venues, preventing equipment failures during performances and reducing costly downtime.


Commercial Workstations

Integrated USB-C and USB-A fast charging ports conveniently power tablets, wireless units, and accessories right from the rack without occupying precious outlets.


AV & Recording Racks

Front-panel diagnostic LEDs provide at-a-glance breaker and protection status, eliminating guesswork when troubleshooting power issues in complex rack configurations.

Technical Specifications

Family

Merit Z

Maximum Output Current

10 Amps

Line Cords

3x18 AWG

Operating Voltage

230V~50/60Hz

Spike Protection Mode

Line to neutral

Energy Dissipation

230 Joules

Peak Impulse Current

6500 Amps

Maximum Continuous Operating Voltage

350 VAC RMS

Let-through Voltage

920 Volts

Noise Attenuation

Greater than 20dB, 200kHz–10MHz

Under-voltage Shutoff (EVS)

180VAC ± 5%

Over-voltage Shutoff (EVS)

274VAC ± 5%

Dimensions

1.75″H x 19″W x 7.5″D (4.4 cm x 48.3 cm x 19.1 cm)

Weight

6.5 lb / 2.9 kg

Construction

Steel chassis, integrated rack ears, black painted

3 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.
