6A Prestige Voltage Regulator (P-1400 AR E)

⚡220-240 Volts

The 6 Amp P-1400 AR E delivers a stable 230 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages – all of which can cause sensitive electronic equipment to malfunction or sustain damage.

Where to Purchase
Find a Retailer Near You

Become an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Description

The P-1400 AR E accepts any input voltage from 188V to 270V and transforms it to a constant output of 230V or 240V (switchable), ±10V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.



Additionally, the P-1400 AR E is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Furman’s Linear Filtering Technology (LiFT), but it will also be fully protected by our exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

Technical Specifications

Family

Prestige Series

Line Voltage

240 Volts

Maximum Output Current

6 amps @ 230 volts (230V output setting – 240V @ 240V output setting)

Line Cord

Detachable 2.5 meter, black cord with Schuko plug (standard)

BNC Socket with Switch

For rear rack lamp: 12VAC 500mA max (lamp not included)

In Regulation Range

182 to 262 VAC (230V output setting), 188 to 270 VAC (240V output setting)

Over Voltage Shutdown

275 VAC nominal

Spike Protection Modes

Line to neutral, zero ground leakage

Spike Clamping Voltage

376 VAC peak @ 3,000 amps

Response Time

1 nanosecond

Maximum Surge Current

6,500 AMPS

Noise Attenuation

10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz

Dimensions

19" W x 12.0" D x 1.745" H

Weight

9.5 kg

Power Consumption

5 Watts (No load)

UPC

654061028154

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

5 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual

Download

Datasheet

Download

Declaration of Conformity

Download

Special Features

6A Prestige Voltage Regulator

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions

True RMS Voltage Regulation

True RMS Voltage Regulation delivers a stable 230/240 volts of AC power to protect equipment from problems caused by AC line voltage irregularities

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised

Surge Protection

Exclusive SMP technology provides the highest level of surge & spike protection available

11 Total Outlets

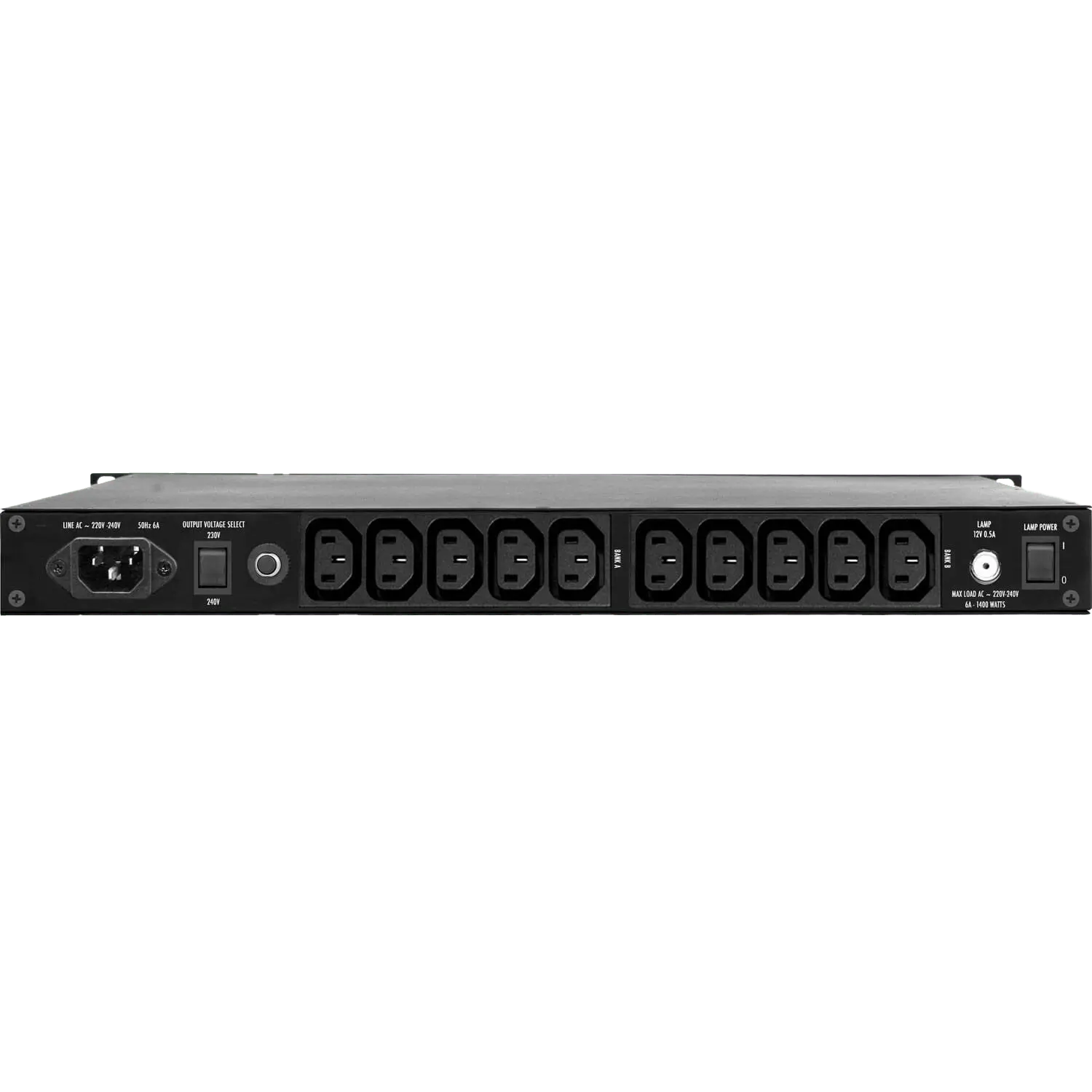

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination

Voltmeter / Ammeter

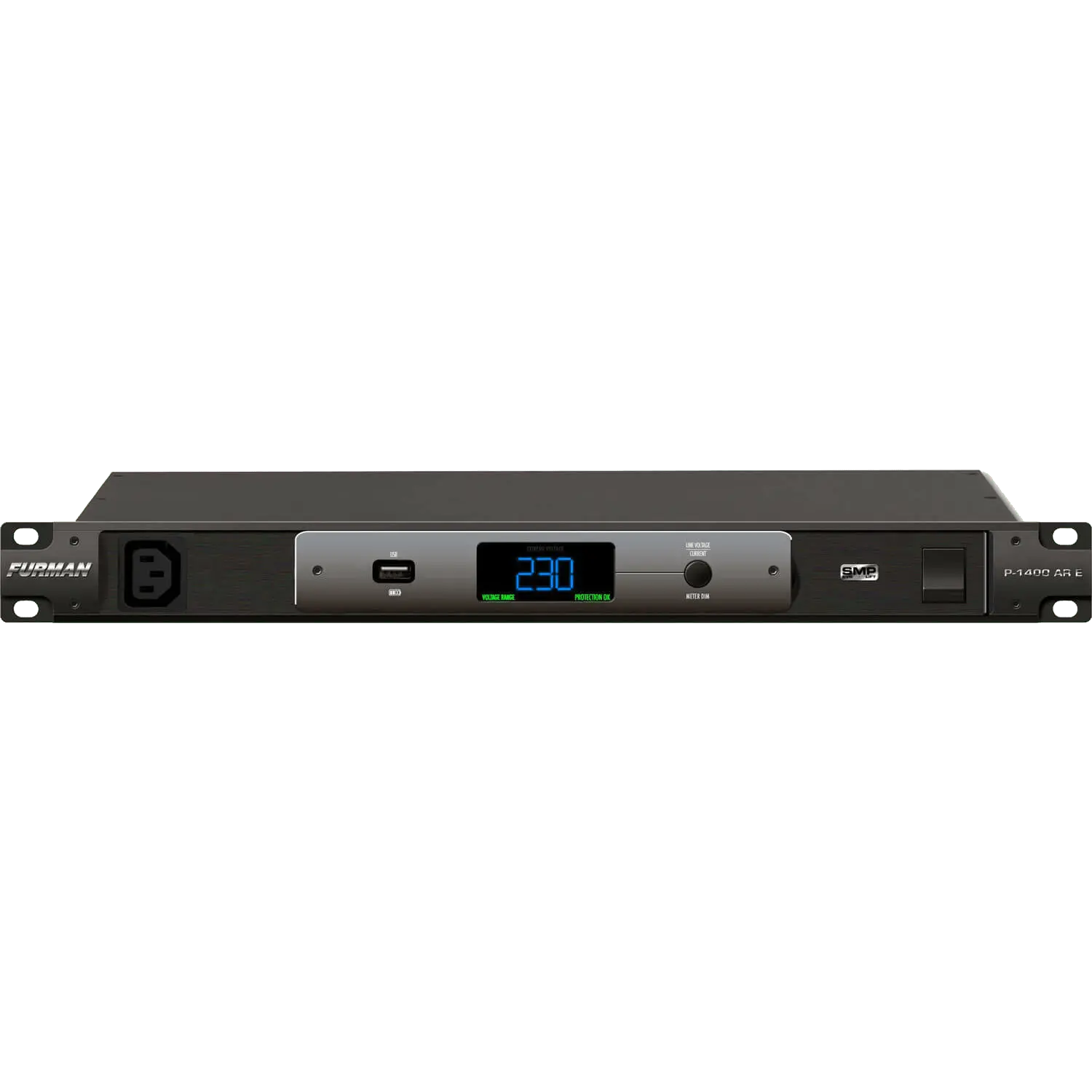

Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw

USB Charger

Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination

6 AMP Rating

6 Amp rating featuring a high inrush magnetic circuit breaker for added protection
