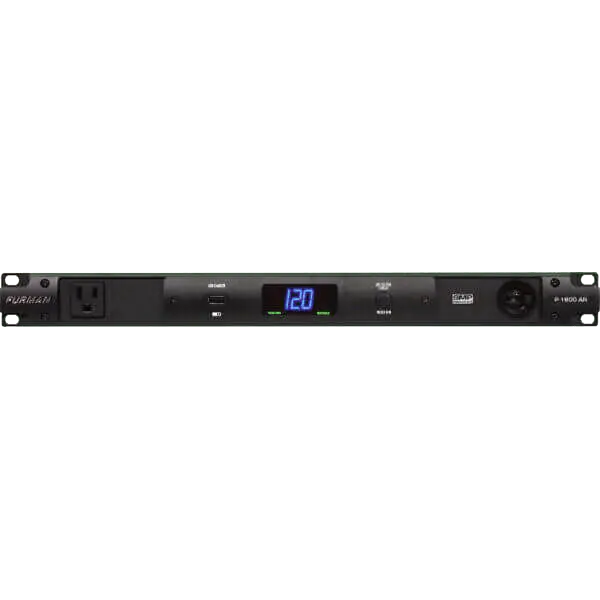

15A Prestige Voltage Regulator, 120V (P-1800 AR)

15A Prestige Voltage Regulator, 120V (P-1800 AR)

120 Volts

The 15 Amp P-1800 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltage – all of which can cause sensitive electronic equipment to malfunction or sustain damage.

$1,963.95
0
Save $0.00
Quantity

or purchase from an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Description

The P-1800 AR accepts input voltages over a wide AC voltage range and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance.



Additionally, the P-1800 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP), and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

Technical Specifications

Family

Prestige Series

Line Voltage

120 (Volts)

Number of Outlets

9

Number of Isolated Banks

2

Outlet Descriptions

All 9 outlets regulated and conditioned – 8 on the rear panel and 1 on the front

Rack Mountable

Yes

Rack Ears Included

Yes

Front Panel Meter(s)

LED voltmeter/ammeter displays incoming voltage and output current draw

Front Media Light(s)

No

Control

Front panel On/Off switch, Voltage meter dimmer button

Voltage Regulation

Regulation capture range: 97 VAC to 137 VAC

Compliance

cETLus

USB Charging

1 front panel USB charger

Low Voltage Trigger

N/A

AC Power Cord

10 ft. captive 3/14 AWG, black cord with NEMA 15 plug

Dimensions

19″ W x 12.0″ D x 1.75″ H

Weight

15 lbs

Power Consumption

5 Watts

AC Protection Technology

True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff

90V

Over-Voltage Shutoff

140 VAC

Maximum Current Rating

15 Amps

Initial Clamping Level

188 VAC peak @ 3,000 Amps

Filtration Technology

LiFT

Filtration Rating

10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz

Signal Line Protection

No

BNC Socket with Switch

No

UPC

For rear rack lamp: 12VAC 500mA max (lamp not included)

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

5 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Datasheet

Special Features

EXPLORE 15A Prestige Voltage Regulator

Surge Protection

Exclusive SMP technology from Furman provides the highest level of surge and spike protection available

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions

True RMS Voltage Regulation

True RMS Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination

Voltmeter / Ammeter

Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw

USB Charger

Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination

Wall Wart Spacing

Three widely spaced outlets accommodate bulky AC power transformers

15 AMP Rating

15 Amp rating featuring a high inrush magnetic circuit breaker for added protection

Nine Total Outlets

Nine total outlets (8 rear panel outlets and one front panel convenience outlet)
