20A Advanced Power Conditioner W/SMP, No Lights, 9 Outlets, 1RU, 10Ft Cord (P-8 PRO C)

⚡120 Volts

The P-8 PRO C features the venerable Series Multi-Stage Protection (SMP) circuit and exclusive Linear Filtering Technology (LiFT) from Furman. Together, these technologies comprise what is, without question, the world's most advanced and comprehensive transient voltage surge suppressor/conditioner.
$661.95
0
Save $0.00
Quantity

or purchase from an Authorized Retailer

  • Description

  • Specifications

  • Warranty

  • Resources

Applications

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner… You’re going to plug that into the wall? One big spike and your rig is up in smoke. The advanced Series Multi-Stage Protection from Furman defends your gear from the spikes and surges that are so common at gigs and practice spots. With advanced Linear Filtering Technology from Furman, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With advanced Linear Filtering Technology from Furman, you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Advanced Series Multi-Stage Protection from Furman keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs, and other event venues have some of the worst power out there—from air compressors turning on and off to light shows pulling current loads up and down, the AC power can strain the circuits in your rig. Advanced Series Multi-Stage Protection and LiFT from Furman keep the bad stuff out, and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes its toll—that’s why it’s smart to plug into advanced Linear Filtering Technology from Furman. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Technical Specifications

Maximum Surge Current

6,500 amps

BNC Socket w/Switch

Rear rack lamp, 12VAC 500MA max (lamp not included)
Maximum Surge Current: 6,500 Amps

Family

Classic Series

Line Voltage

120 (Volts)

Number of Outlets

9

Number of Isolated Banks

2

Outlet Descriptions

All 9 outlets linearly filtered and surge protected

Rack Mountable

Yes

Rack Ears Included

Yes

Front Panel Meter(s)

No

Front Media Light(s)

No

Control

Front panel On/Off switch

Voltage Regulation

No

Compliance

CSA UL1449, CE, NRTL-C

USB Charging

N/A

Low Voltage Trigger

N/A

AC Power Cord

10 ft, captive 3/14 AWG, with NEMA 15 plug

Dimensions

19" W x 10.5" D x 1.75" H

Weight

12 lbs

Power Consumption

12 Watts

AC Protection Technology

Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff

90V

Over-Voltage Shutoff

140 VAC

Maximum Current Rating

20 Amps

Initial Clamping Level

188 VAC peak @ 3,000 Amps

Filtration Technology

LiFT

Filtration Rating

10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Signal Line Protection

No

UPC

654061041122

Proposition 65 Warning

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

3 Year Limited Warranty

Important Note for Internet Purchasers



  • YOUR FURMAN WARRANTY WILL NOT BE VALID IF YOU PURCHASE A FURMAN PRODUCT FROM AN UNAUTHORIZED AUDIO VIDEO INTERNET DEALER, or if the original serial number has been removed, defaced or modified.
  • Only authorized dealers provide NEW Furman products — not used or refurbished — and have the training and expertise to assist you in selecting the correct model for your application. They also have the knowledge to correctly answer any questions regarding proper installation and ensure that your Audio Video system is fully protected. Purchase your Furman product from one of our Authorized Online dealers.
  • Note: Furman products purchased through auction sites DO NOT have a valid warranty.
Title

SAVE YOUR SALES RECEIPT



The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Online registration is no longer required for any Furman products.

Furman product warranties vary by model/product family. See below for warranty length by product family. Warranty term begins upon date of purchase on sales receipt. For specific warranty terms and conditions or for warranty information on products not listed below please see your product manual.

Resources

Manual:

Download

Datasheet

Download

Special Features

EXPLORE P-8 PRO C POWER CONDITIONER

SMP+ with extreme voltage shutdown

LiFT (Linear Filtering Technology) with zero ground contamination

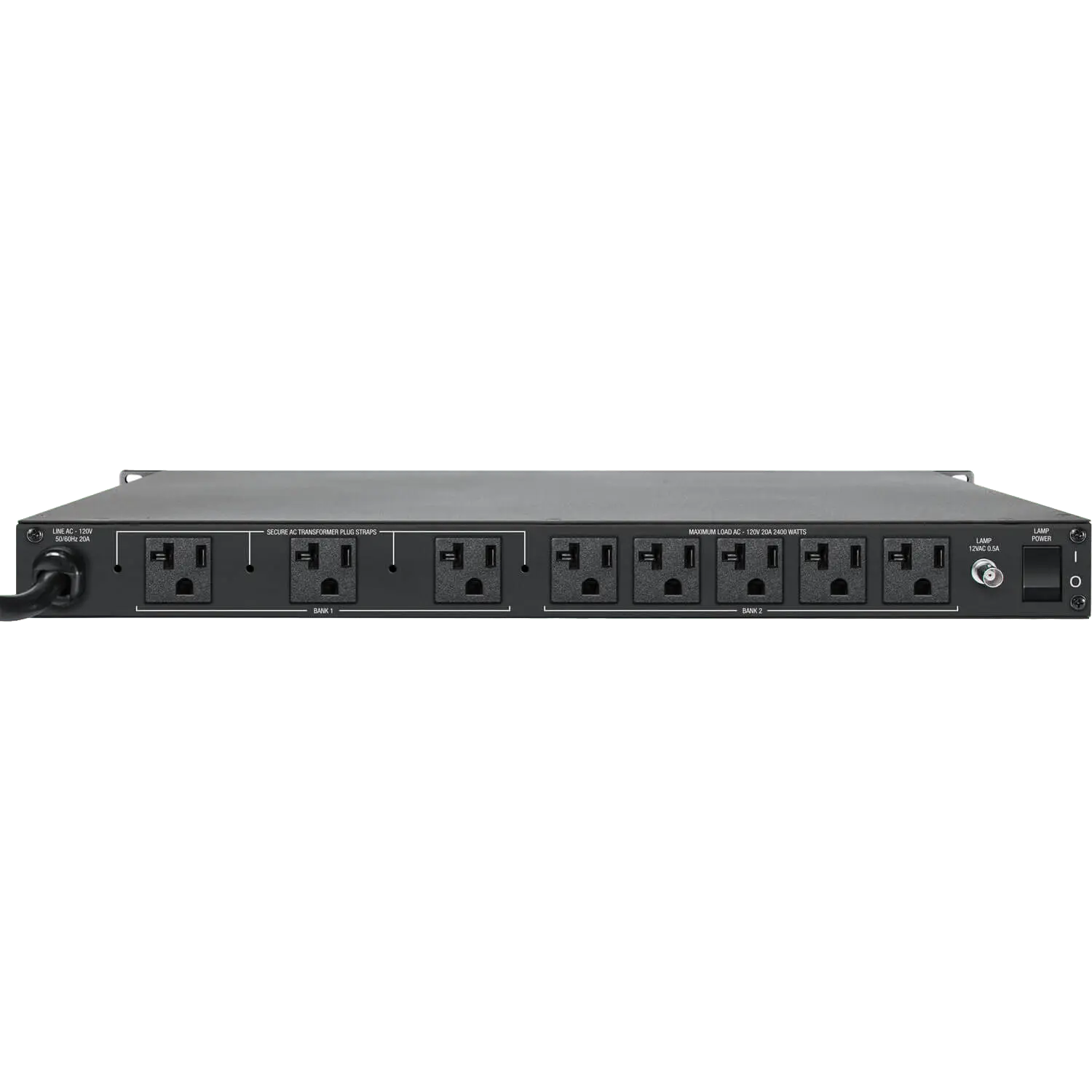

Eight rear panel outlets and one front panel outlet

BNC connector on the rear panel allows you to attach any standard (12V 0.5 Amp) goose-neck lamp to illuminate the rear of your rack

2400 Watt rating, with a high in-rush 20 Amp circuit breaker

Rugged road-worthy steel chassis

10 foot power cord with NEMA 5-20P plug
